Features:

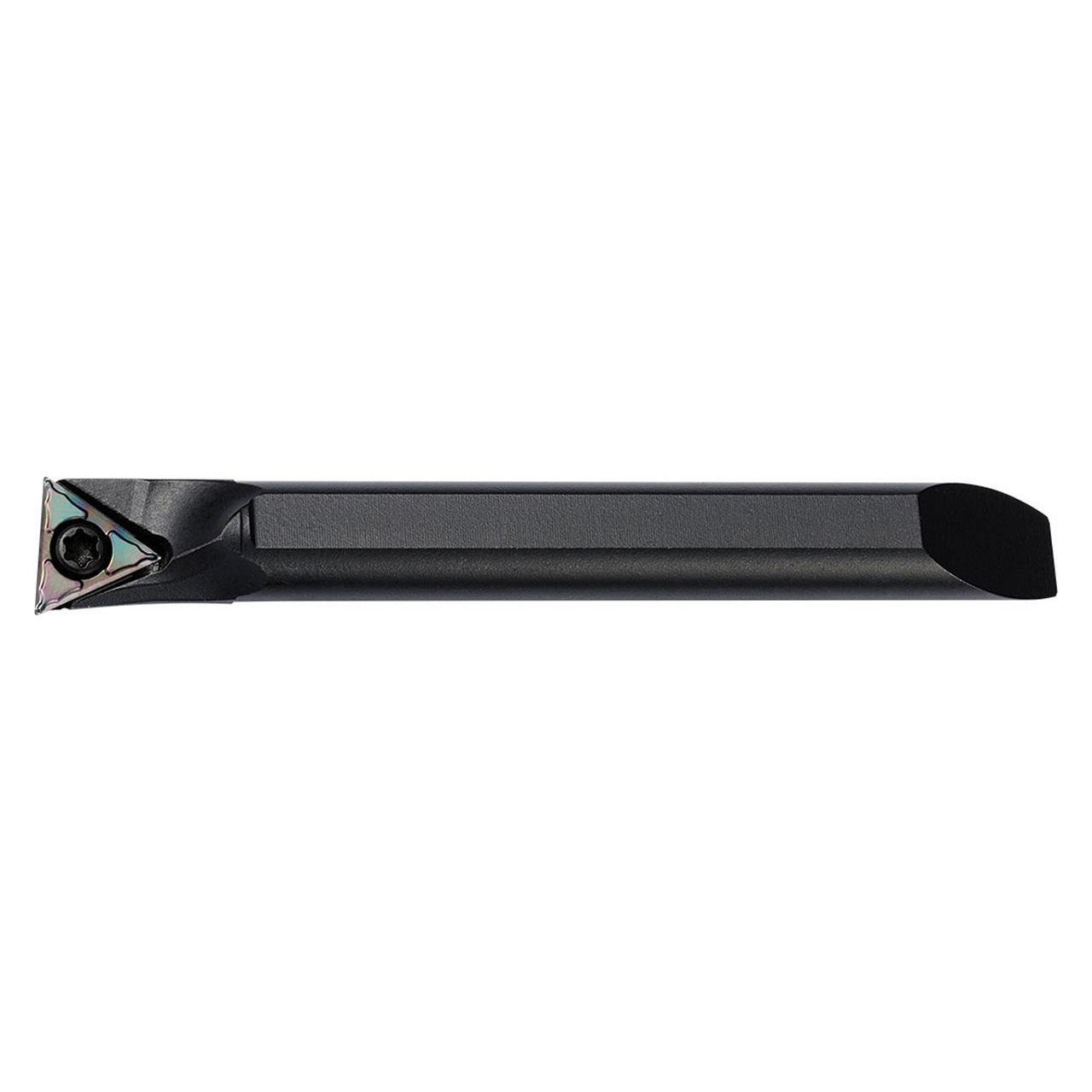

- Indexable small diameter boring bars
- High precision solid bars with the convenience of indexable inserts for reduced machining costs
- The EZ adjust structure features much lower mounting times compared to conventional boring bars
- The EZ adjust structure features higher repeatability and accuracy compared with conventional boring bars
- 5 (Axial), -10 (Radial) Rake angle EZ bar plus boring bar
Product Specifications
| EDP Number | THC14617 |
| Connection Diameter (Decimal Inch) | 0.3150" |
| Connection Diameter (mm) | 8.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.3937" |
| Minimum Bore Diameter (mm) | 10.00mm |
| Shank Height (Decimal Inch) | 0.2953" |
| Shank Height (mm) | 7.50mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Application | Boring |
| Bar Type | Carbide Shank |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Shape | 60 Degree Triangle |
| Material | Steel/Carbide |
| Rake | Positive |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
C...STLP-EZP
Series:
EZB;Minimum Bore Diameter (Decimal Inch)=0.3937"""
Minimum Bore Diameter (mm):
10.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8.00mm
Through Coolant:
No
