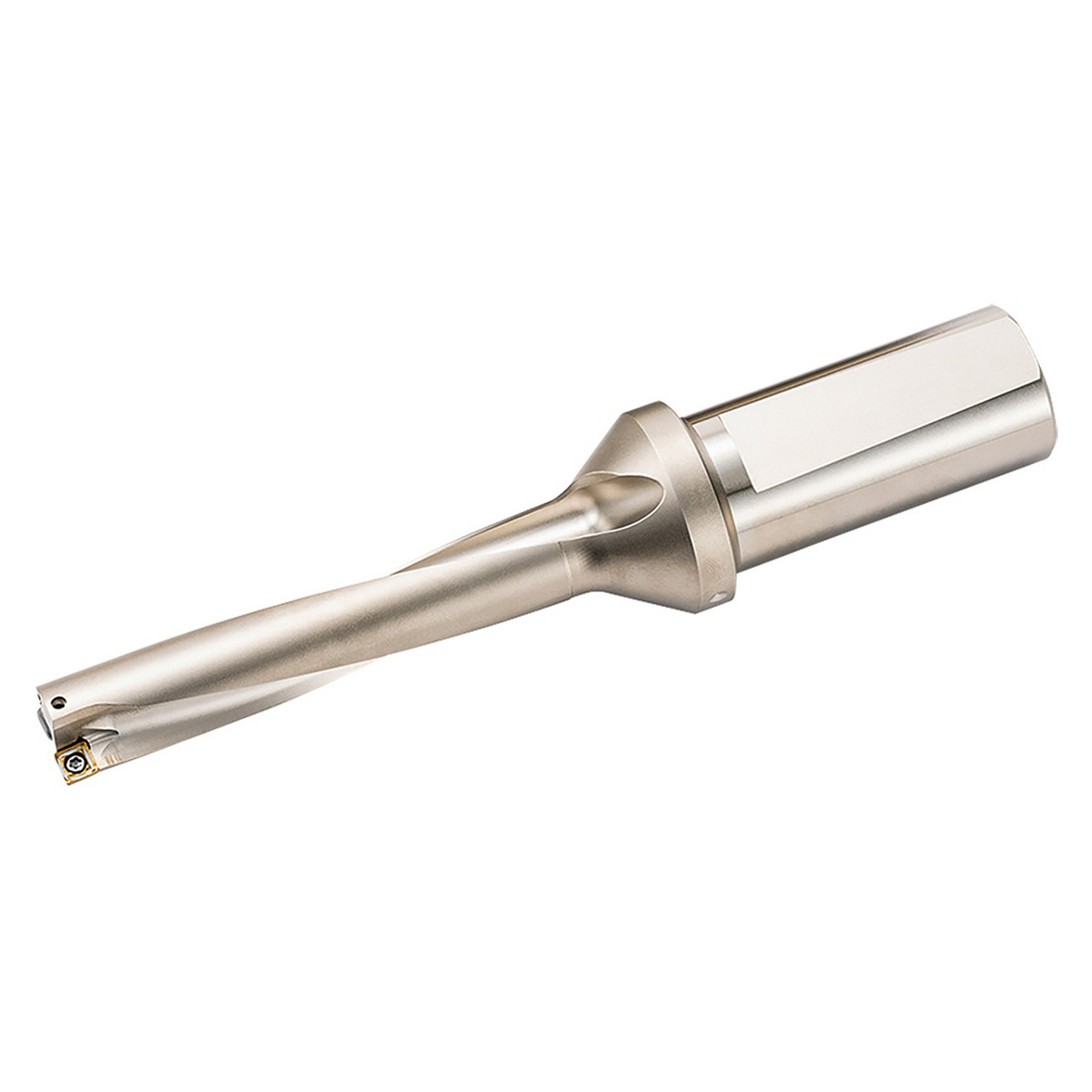

Kyocera Precision Tools THD11744 | S100DRV0922507 0.9221" Diameter x 4.6095" Usable Length 2 Flute Steel Indexable Insert Drill

$831.04 $689.76
(You save $141.28)
Brand:
Kyocera Precision Tools
Drill Style:
DRV
Drill Diameter (Decimal Inch):
0.9221
Drill Diameter (mm):
23.42
Maximum Drill Depth (Decimal Inch):
4.6095
Maximum Drill Depth (mm):
117.08
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.0000
Shank Diameter (mm):
25.40
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
5xD
interval quantity:
1
SKU:
23232283
UPC:
Weight:
1.33 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:


Product Specifications
EDP NumberTHD11744
Cutting Diameter (Decimal Inch)0.9221"
Cutting Diameter (mm)23.42mm
Cutting Diameter Minimum (Decimal Inch)0.9221"
Cutting Diameter Minimum (mm)23.42mm
Cutting Diameter Maximum (Decimal Inch)0.9221"
Cutting Diameter Maximum (mm)23.42mm
Connection Diameter (Decimal Inch)1.0000"
Connection Diameter (mm)25.40mm
Contact Surface Diameter Machine Side (Decimal Inch)1.2598"
Contact Surface Diameter Machine Side (mm)32.00mm
Usable Length (Decimal Inch)4.6095"
Usable Length (mm)117.08mm
ApplicationDrilling
Coolant Through (Yes/No)Yes
Drill Depth by Diameter Ratio5xD
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
Weldon FlatYes

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
