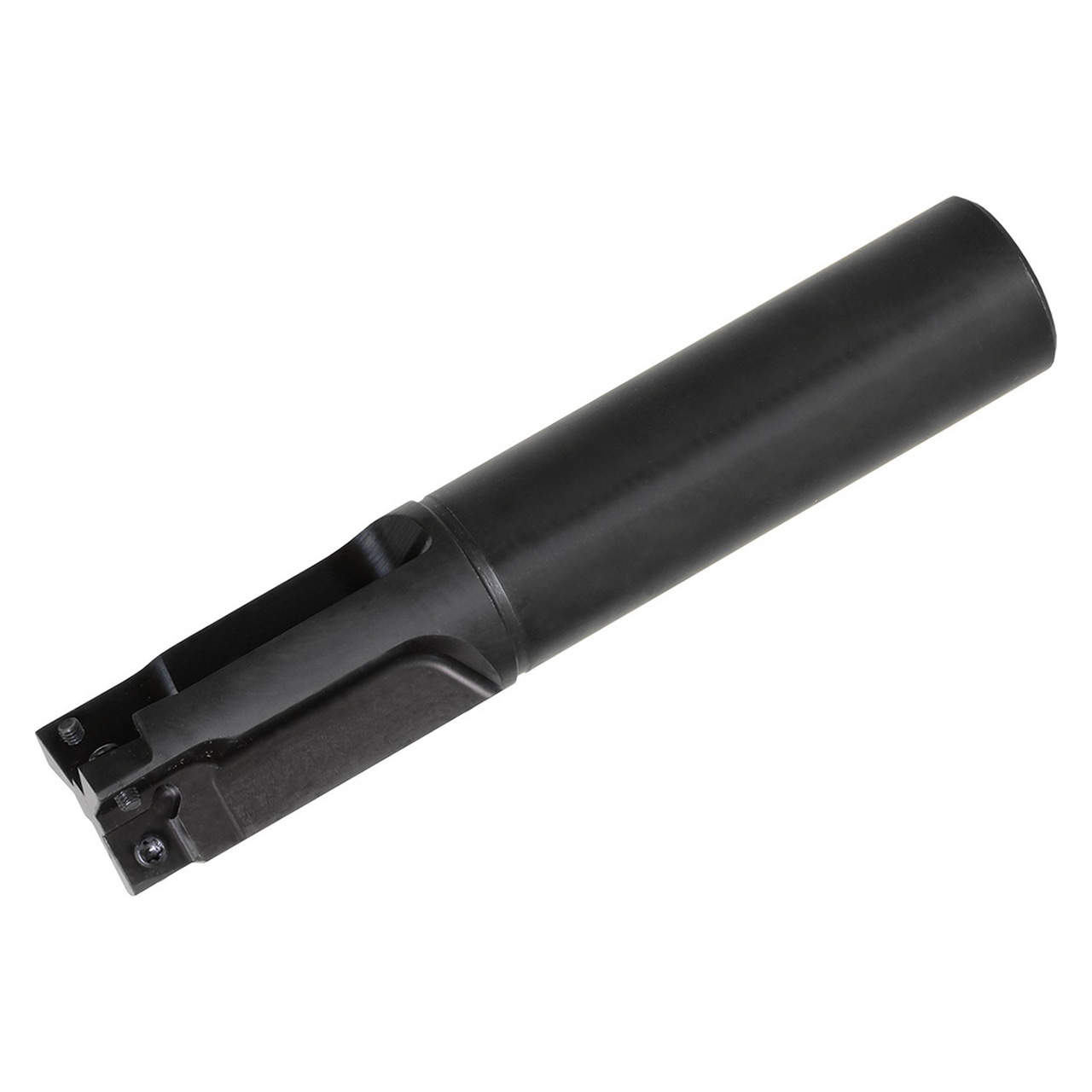

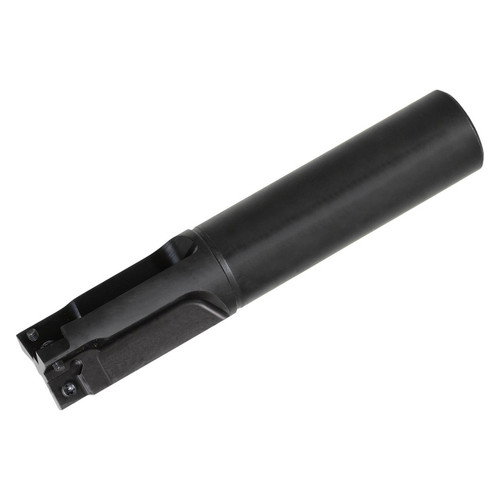

Kyocera Precision Tools THN02008 | MEF17S16 0.2874-0.6890" Diameter x 89 Degree Angle 2 Flute Steel Indexable End Mill

$393.95 $326.98
(You save $66.97)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
9/32 - 11/16"
Cutting Diameter (Decimal Inch):
0.2874 - 0.6890"
Cutting Diameter (mm):
7.30 - 17.50mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Number of Cutter Inserts:
2
Toolholder Style:
MEF
interval quantity:
1
SKU:
23233014
UPC:
Weight:
0.52 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Right-Hand, standard length, 89 Degree lead angle end mill
  • Bolt countersinking (M10), shouldering, facing applications
  • Compatible with SPMT060204E-Z, SPMT060208E-Z inserts

Product Specifications
EDP NumberTHN02008
Cutting Diameter (Decimal Inch)0.2874 - 0.6890"
Cutting Diameter (mm)7.30 - 17.50mm
Cutting Diameter Minimum (Decimal Inch)0.2874"
Cutting Diameter Minimum (mm)7.30mm
Cutting Diameter Maximum (Decimal Inch)0.6890"
Cutting Diameter Maximum (mm)17.50mm
Connection Diameter (Decimal Inch)0.6299"
Connection Diameter (mm)16.00mm
Tool Entering Angle ( Degree)4.9209 Degree
ApplicationBolt Countersinking | Facing | Shouldering
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
