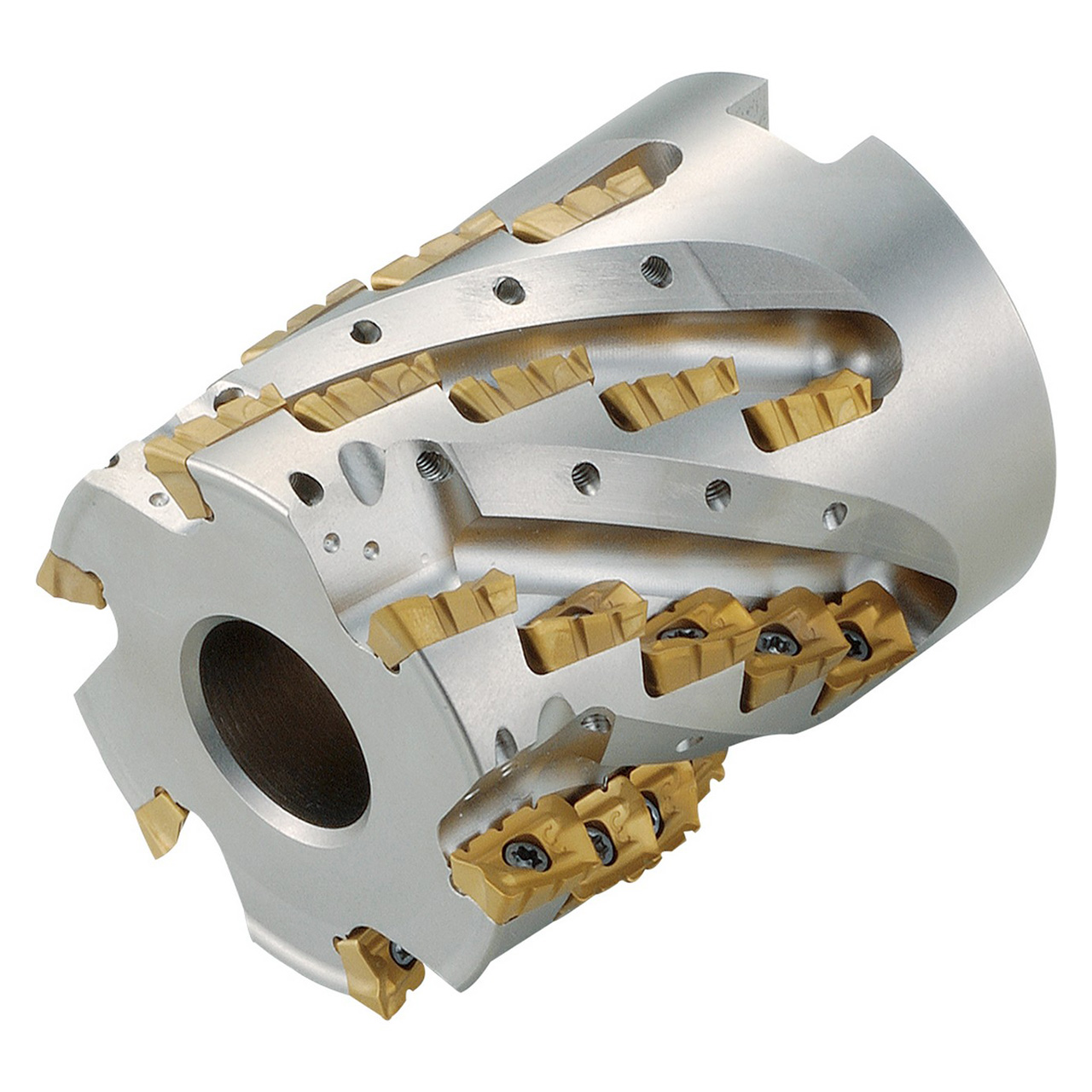

Kyocera Precision Tools THN03882 | MECH2000R1724T 2.0000" Diameter x 1.1811" Max Depth of Cut 4 Flute Steel Helical Shell Mill

$864.83 $717.81
(You save $147.02)
Brand:
Kyocera Precision Tools
Cutting Diameter (Decimal Inch):
2.0000"
Cutting Diameter (mm):
50.80mm
Arbor Hole Diameter (Decimal Inch):
0.7500"
Arbor Hole Diameter (mm):
19.05mm
Lead Angle:
90 Degree
Series:
MEC;Through Coolant=No"
Maximum Depth of Cut (Decimal Inch):
1.1811"
Maximum Depth of Cut (mm):
30.00mm
Cutting Direction:
Right-Hand
interval quantity:
1
SKU:
23233207
UPC:
Weight:
1.28 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Low cutting force and reduced chattering for high-efficiency milling
  • Great for various milling applications
  • Compatible with: BDMT170408ER-N3, BDMT170408ER-N4 style inserts

Product Specifications
EDP NumberTHN03882
Maximum Depth of Cut (Decimal Inch)1.1811"
Cutting Diameter (Decimal Inch)2.0000"
Cutting Diameter (mm)50.80mm
Cutting Diameter Minimum (Decimal Inch)2.0000"
Cutting Diameter Minimum (mm)50.80mm
Cutting Diameter Maximum (Decimal Inch)2.0000"
Cutting Diameter Maximum (mm)50.80mm
Cutting Diameter Maximum (mm)0.7500"
Connection Bore Diameter (mm)19.05mm
Tool Entering Angle ( Degree)0.8272 Degree
ApplicationFacing | Shouldering
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes4
Number of Inserts8

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
