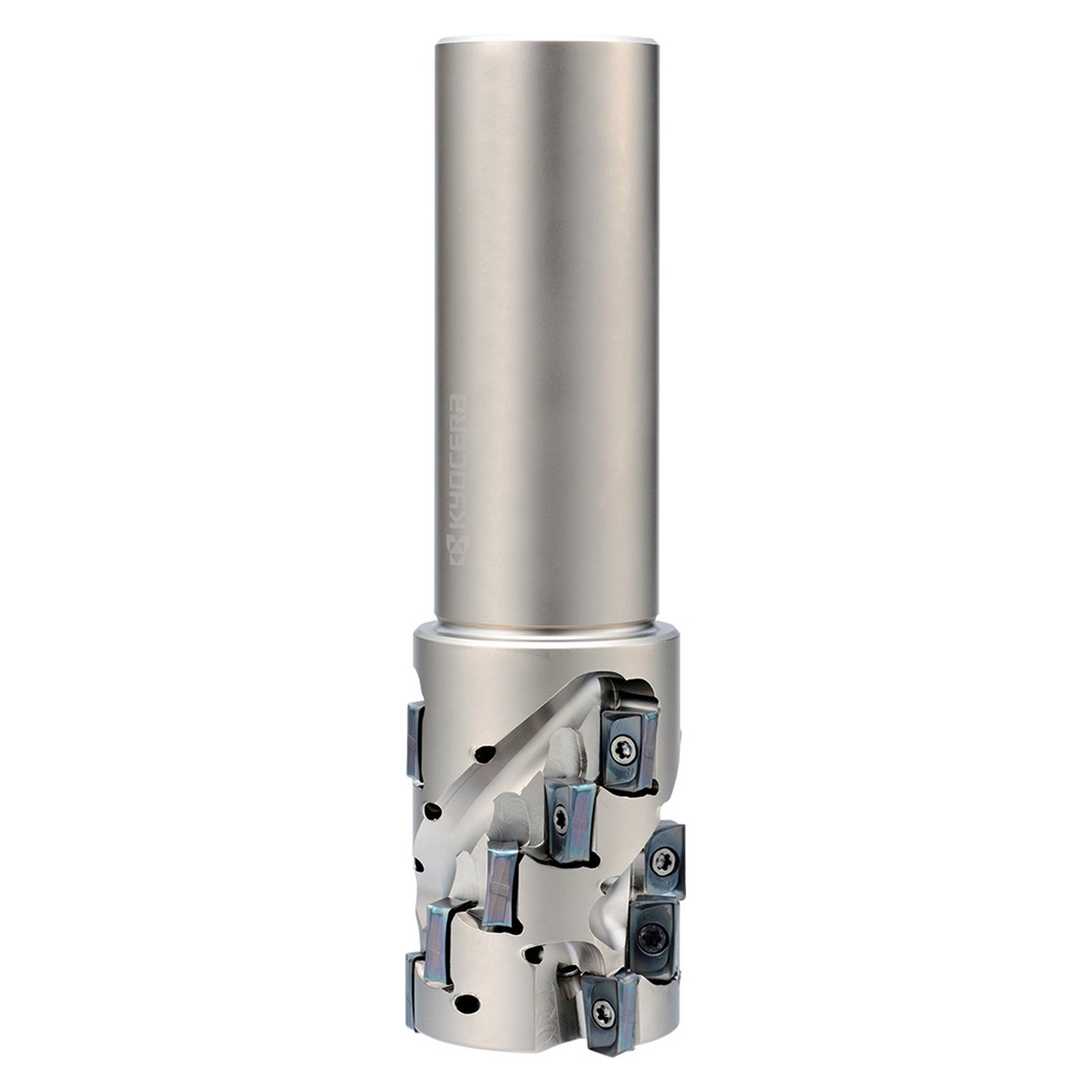

Kyocera Precision Tools THN04157 | MEWH050S421543T 1.9685" Diameter x 2.0866" Max Depth of Cut 3 Flute Steel Helical End Mill

$1,611.35 $1,337.42
(You save $273.93)
Brand:
Kyocera Precision Tools
Cutting Diameter (Decimal Inch):
1.9685"
Cutting Diameter (Decimal Inch):
50.00mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.6535"
Shank Diameter (mm):
42.00mm
Lead Angle:
90 Degree
Series:
MEW;Through Coolant=Yes"
interval quantity:
1
SKU:
23233236
UPC:
Weight:
4.01 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 90 Degree Milling with double-sided 4-edge inserts
  • Low cutting forces with chatter resistance for excellent surface finish
  • Excellent surface finish and stable machining due to innovative toolholder design
  • Excellent chip evacuation
  • Compatible with: LOMU1505 style inserts

Product Specifications
EDP NumberTHN04157
Maximum Depth of Cut (Decimal Inch)2.0866"
Cutting Diameter (Decimal Inch)1.9685"
Cutting Diameter (mm)50.00mm
Cutting Diameter Minimum (Decimal Inch)1.9685"
Cutting Diameter Minimum (mm)50.00mm
Cutting Diameter Maximum (Decimal Inch)1.9685"
Cutting Diameter Maximum (mm)50.00mm
Connection Diameter (Decimal Inch)1.6535"
Connection Diameter (mm)42.00mm
Tool Entering Angle ( Degree)3.6614 Degree
ApplicationFacing | Shouldering
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes3
Number of Inserts12
Shank TypeStandard Length

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
