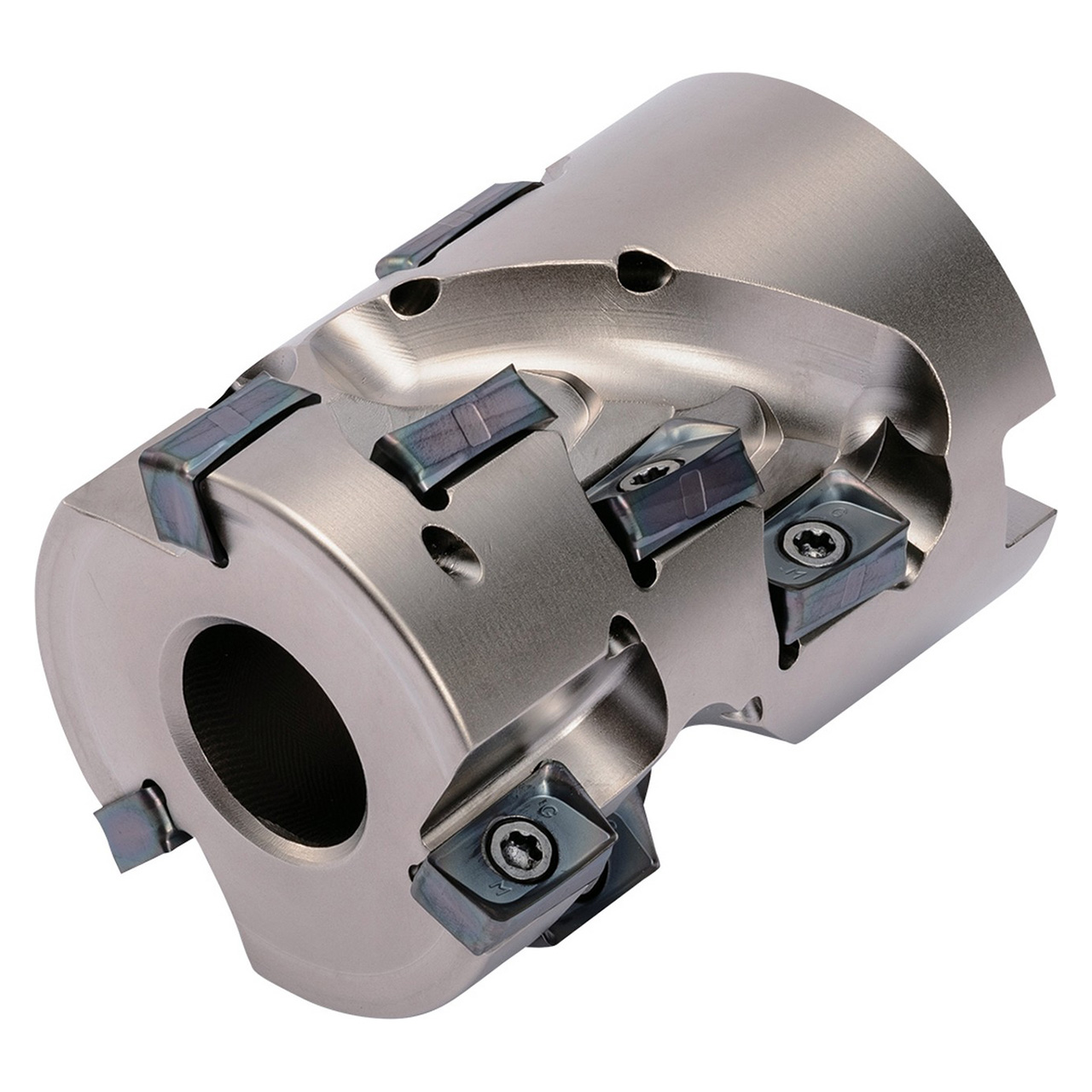

Features:
- 90 Degree Milling with double-sided 4-edge inserts
- Low cutting forces with chatter resistance for excellent surface finish
- Excellent surface finish and stable machining due to innovative toolholder design
- Excellent chip evacuation
- Compatible with: LOMU1505 style inserts
Product Specifications
| EDP Number | THN04204 |
| Maximum Depth of Cut (Decimal Inch) | 2.0866" |
| Cutting Diameter (Decimal Inch) | 3.0000" |
| Cutting Diameter (mm) | 76.20mm |
| Cutting Diameter Minimum (Decimal Inch) | 3.0000" |
| Cutting Diameter Minimum (mm) | 76.20mm |
| Cutting Diameter Maximum (Decimal Inch) | 3.0000" |
| Cutting Diameter Maximum (mm) | 76.20mm |
| Cutting Diameter Maximum (mm) | 1.0000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Tool Entering Angle ( Degree) | 3.8976 Degree |
| Application | Facing | Shouldering |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 4 |
| Number of Inserts | 16 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Decimal Inch):
3.0000"
Cutting Diameter (mm):
76.20mm
Arbor Hole Diameter (Decimal Inch):
1.0000"
Arbor Hole Diameter (mm):
25.40mm
Lead Angle:
90°
Series:
MEW;Through Coolant=No"
Maximum Depth of Cut (Decimal Inch):
2.0866"
Maximum Depth of Cut (mm):
53.00mm
Cutting Direction:
Right-Hand
