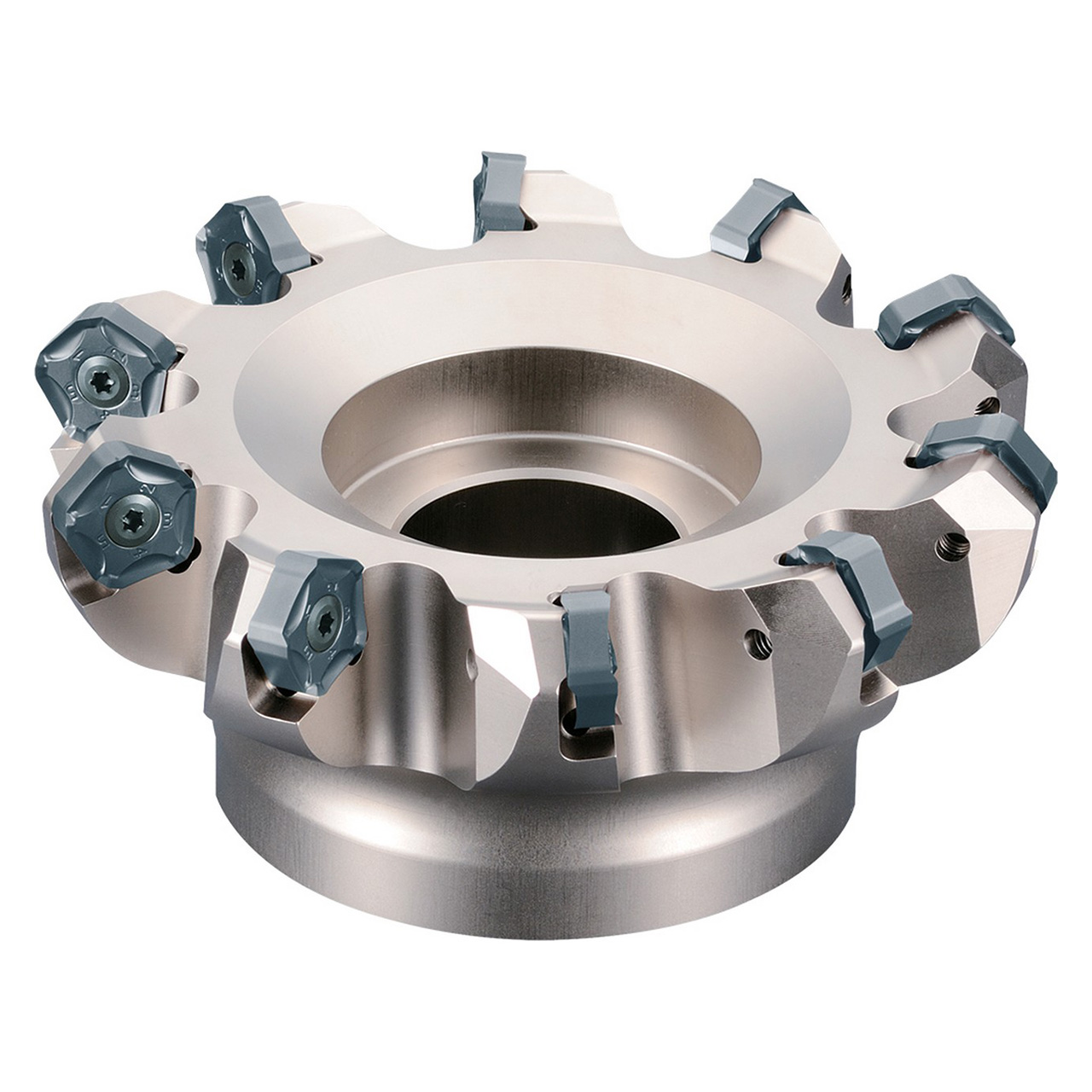

Kyocera Precision Tools THN04474 | MFPN45200R18T 7.8740-8.3858" Diameter x 45 Degree Angle 18 Flute Steel Indexable Face Mill

$2,587.57 $2,147.68
(You save $439.89)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
8-25/64"
Cutting Diameter (Decimal Inch):
8.3858"
Cutting Diameter (mm):
213.00mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Arbor Hole Diameter (Inch):
1-7/8"
Arbor Hole Diameter (Decimal Inch):
1.8752"
Arbor Hole Diameter (mm):
47.63mm
Series:
MFPN;Cutter Style=MFPN"
Number of Cutter Inserts:
18
interval quantity:
1
SKU:
23233264
UPC:
Weight:
16.09 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 45 Degree Lead angle face mill
  • Application: facing, chamfering
  • Economical double-sided 10-edge inserts
  • Reduced chattering with low cutting forces due to curved cutting edge design
  • Suppresses fracturing with dual angle edge design

Product Specifications
EDP NumberTHN04474
Maximum Depth of Cut (Decimal Inch)0.2362"
Cutting Diameter (Decimal Inch)7.8740 - 8.3858"
Cutting Diameter (mm)200.00 - 213.00mm
Cutting Diameter Minimum (Decimal Inch)7.8740"
Cutting Diameter Minimum (mm)200.00mm
Cutting Diameter Maximum (Decimal Inch)8.3858"
Cutting Diameter Maximum (mm)213.00mm
Cutting Diameter Maximum (mm)1.8752"
Connection Bore Diameter (mm)47.63mm
Contact Surface Diameter Machine Side (Decimal Inch)5.5906"
Contact Surface Diameter Machine Side (mm)142.00mm
Tool Entering Angle ( Degree)45 Degree
ApplicationChamfering, Facing
Cutter PitchExtra Fine Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes18
Number of Inserts18
