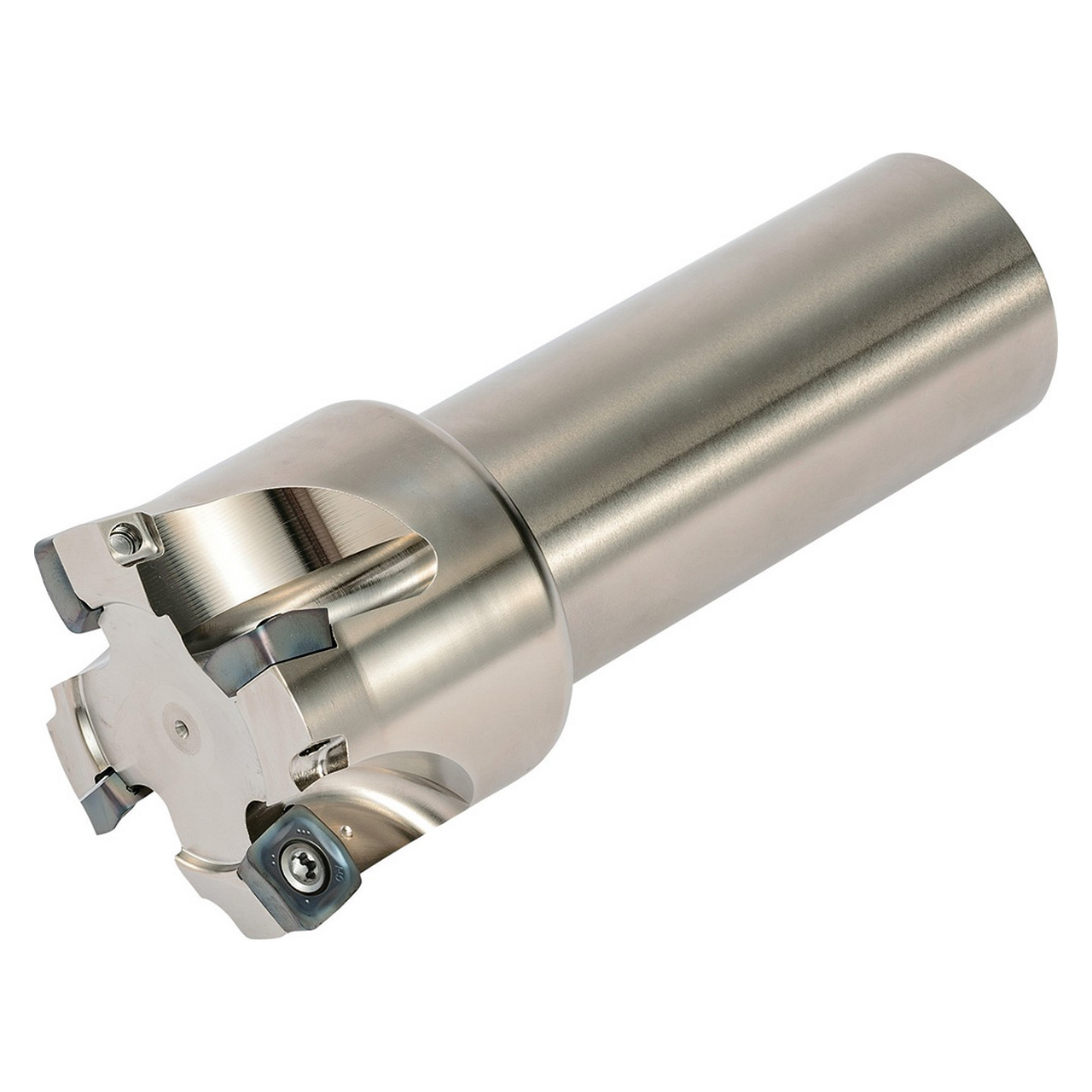

Features:
- Reduce cycle time during roughing applications
- Reduced chattering with convex cutting edge design
- 3 different insert designs for a variety of machining operations
- LD chipbreaker can be used for both large D.O.C. and high-feed machining
- Compatible with (5) SOMT14 style inserts
Product Specifications
| EDP Number | THN07620 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787" |
| Cutting Diameter (Decimal Inch) | 2.2441 - 3.1496" |
| Cutting Diameter (mm) | 57.00 - 80.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 2.2441" |
| Cutting Diameter Minimum (mm) | 57.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 3.1496" |
| Cutting Diameter Maximum (mm) | 80.00mm |
| Connection Diameter (Decimal Inch) | 1.6535" |
| Connection Diameter (mm) | 42.00mm |
| Tool Entering Angle ( Degree) | 10 Degree |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 5 |
| Number of Inserts | 5 |
| Shank Type | Standard Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
3-5/32"
Cutting Diameter (Decimal Inch):
3.1496"
Cutting Diameter (mm):
80.00mm
Maximum Depth of Cut (Inch):
5/64"
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.6535"
Shank Diameter (mm):
42.00mm
Number of Cutter Inserts:
5
Toolholder Style:
MFH
