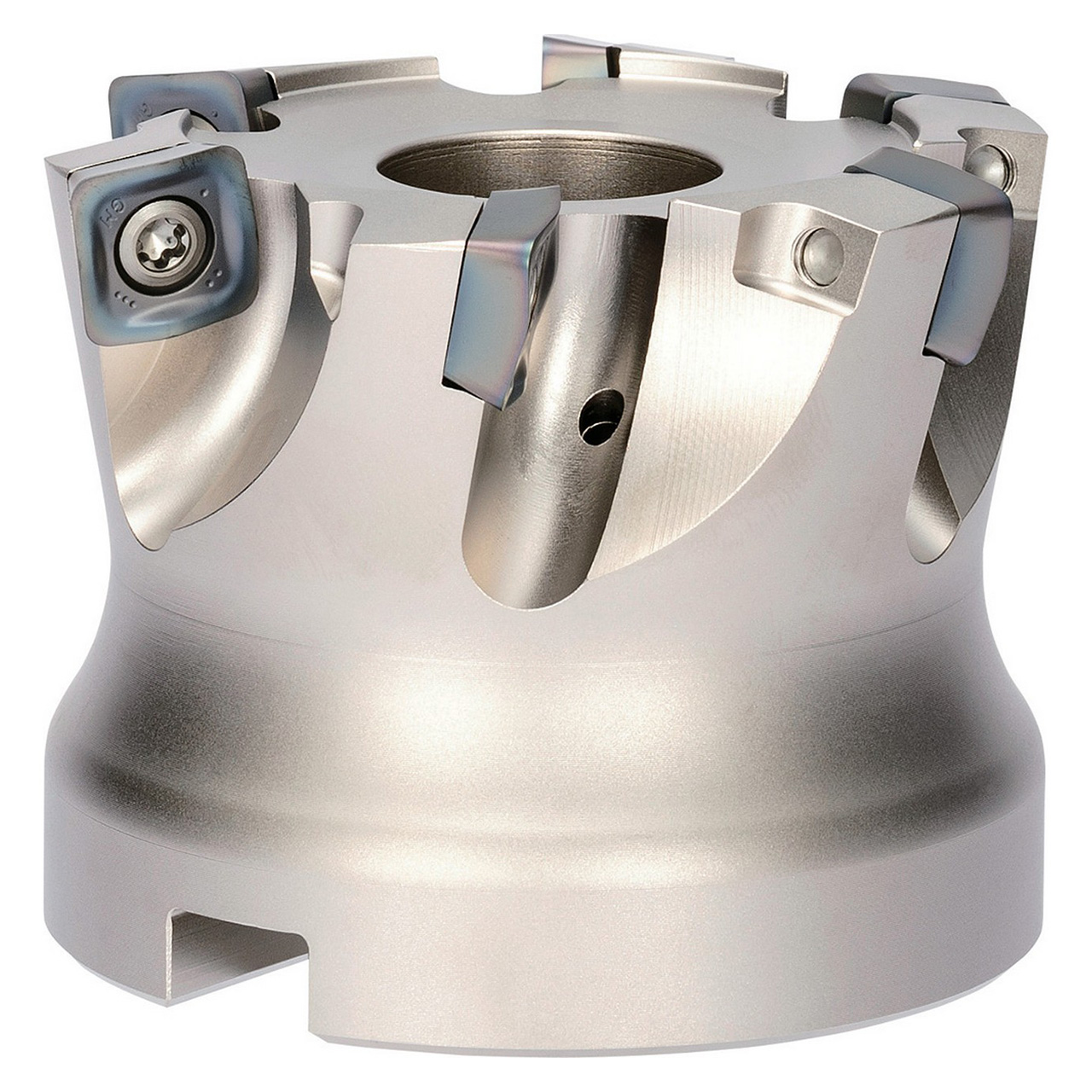

Features:
| EDP Number | THN07701 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787" |
| Maximum Depth of Cut (mm) | 90.00mm |
| Cutting Diameter (Decimal Inch) | 2.2441 - 3.1496" |
| Cutting Diameter (mm) | 57.00 - 80.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 2.2441" |
| Cutting Diameter Minimum (mm) | 57.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 3.1496" |
| Cutting Diameter Maximum (mm) | 80.00mm |
| Cutting Diameter Maximum (mm) | 1.2500" |
| Connection Bore Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.9921" |
| Contact Surface Diameter Machine Side (mm) | 76.00mm |
| Tool Entering Angle ( Degree) | 10 Degree |

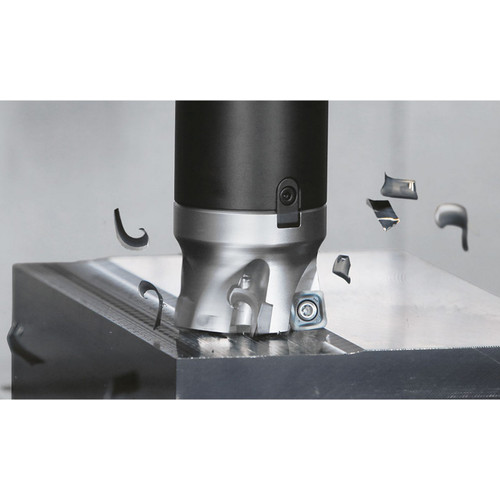

| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 6 |
| Number of Inserts | 6 |
