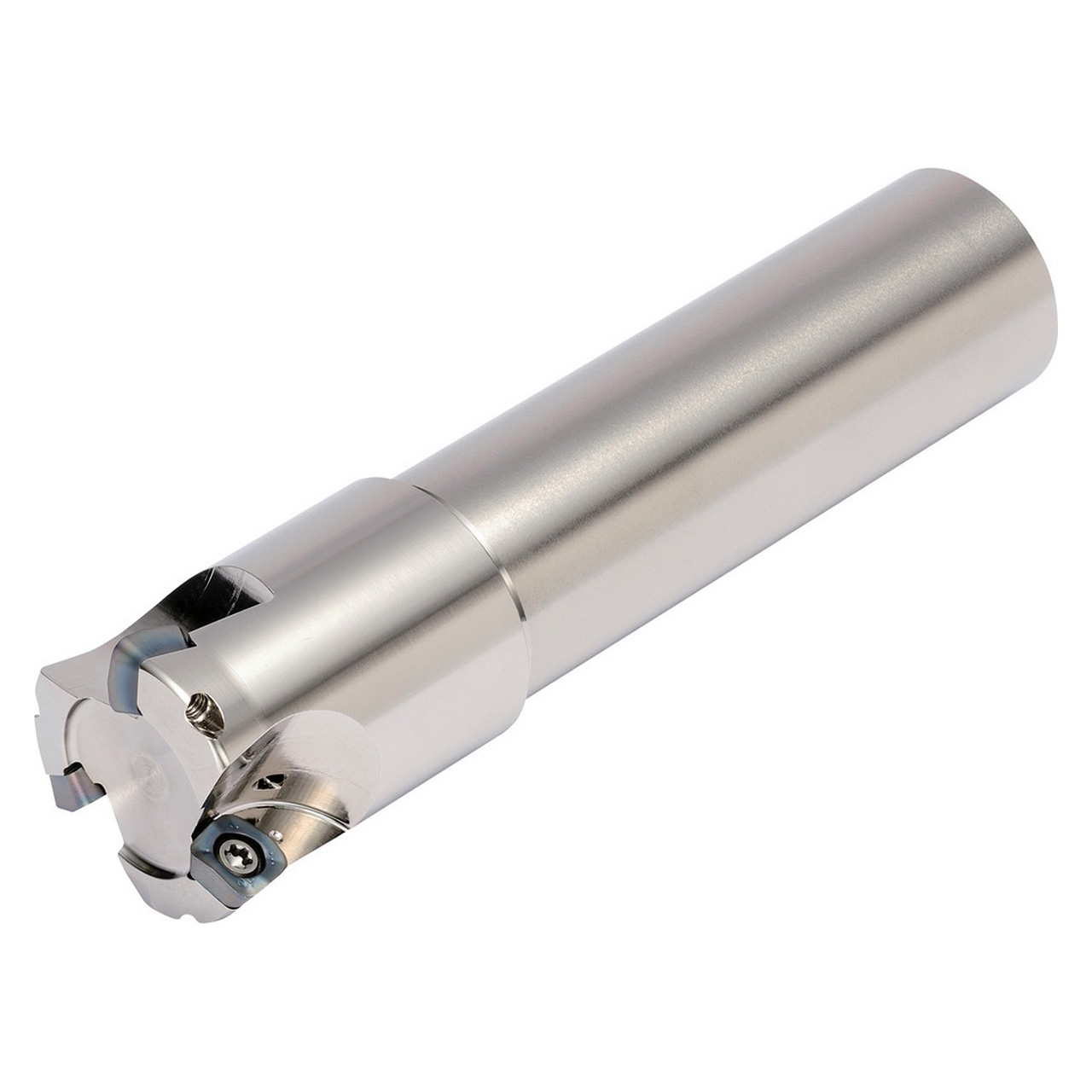

Features:
- Reduce cycle time during roughing applications
- Reduced chattering with convex cutting edge design
- 3 different insert designs for a variety of machining operations
- LD chipbreaker can be used for both large D.O.C. and high-feed machining
- Compatible with (2) SOMT10 style inserts
Product Specifications
| EDP Number | THN07643 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591" |
| Cutting Diameter (Decimal Inch) | 0.4331 - 1.1024" |
| Cutting Diameter (mm) | 11.00 - 28.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.4331" |
| Cutting Diameter Minimum (mm) | 11.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.1024" |
| Cutting Diameter Maximum (mm) | 28.00mm |
| Connection Diameter (Decimal Inch) | 0.9843" |
| Connection Diameter (mm) | 25.00mm |
| Tool Entering Angle ( Degree) | 10 Degree |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Extra-Long Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-7/64"
Cutting Diameter (Decimal Inch):
1.1024"
Cutting Diameter (mm):
28.00mm
Maximum Depth of Cut (Inch):
1/16"
Maximum Depth of Cut (Decimal Inch):
0.0591"
Maximum Depth of Cut (mm):
1.5mm
Shank Type:
Extra-Long Length
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
Number of Cutter Inserts:
2
Toolholder Style:
MFH
