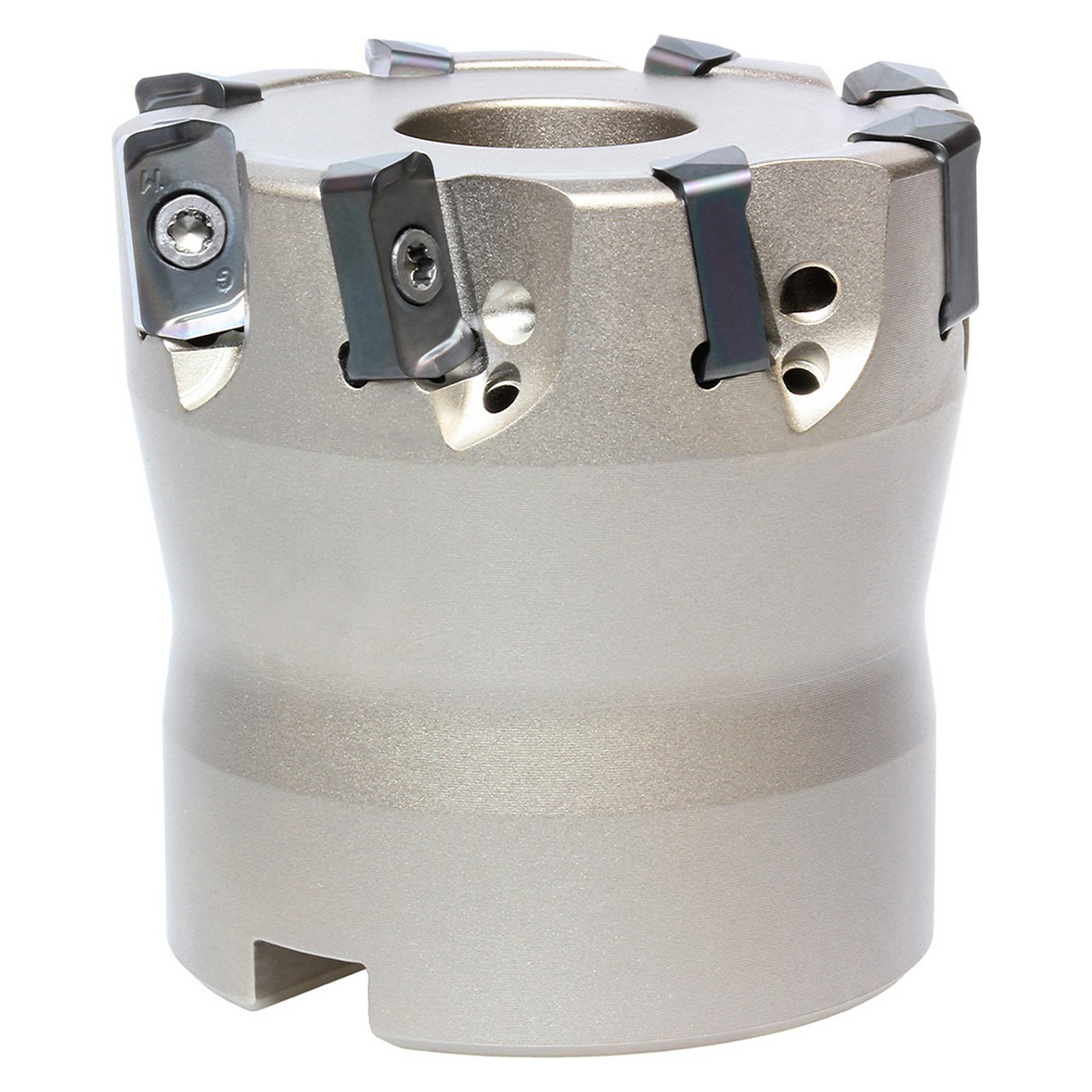

Kyocera Precision Tools THN08237 | MFH1500R035T 1.1850-1.5000" Diameter 5 Flute Steel Indexable High-Feed Face Mill

$576.09 $478.15
(You save $97.94)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-1/2"
Cutting Diameter (Decimal Inch):
1.5000"
Cutting Diameter (mm):
38.10mm
Maximum Depth of Cut (Inch):
3/64"
Maximum Depth of Cut (Decimal Inch):
0.0394"
Maximum Depth of Cut (mm):
1mm
Arbor Hole Diameter (Inch):
1/2"
Arbor Hole Diameter (Decimal Inch):
0.5000"
Arbor Hole Diameter (mm):
12.70mm
Series:
MFHI;Cutter Style=MFH"
Number of Cutter Inserts:
5
interval quantity:
1
SKU:
23233772
UPC:
Weight:
1.05 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 10 Degree Lead angle high feed face mill
  • Application: facing, shouldering, slotting, ramping, helical milling, plunging
  • Clamp screw insert holding design
  • Compatible with (5) LOGU03 inserts
  • Reduced chattering with convex cutting edge design controls initial impact when entering the workpiece

Product Specifications
EDP NumberTHN08237
Maximum Depth of Cut (Decimal Inch)0.0394"
Maximum Depth of Cut (mm)10.00mm
Cutting Diameter (Decimal Inch)1.1850 - 1.5000"
Cutting Diameter (mm)30.10 - 38.10mm
Cutting Diameter Minimum (Decimal Inch)1.1850"
Cutting Diameter Minimum (mm)30.10mm
Cutting Diameter Maximum (Decimal Inch)1.5000"
Cutting Diameter Maximum (mm)38.10mm
Cutting Diameter Maximum (mm)0.5000"
Connection Bore Diameter (mm)12.70mm
Contact Surface Diameter Machine Side (Decimal Inch)1.4000"
Contact Surface Diameter Machine Side (mm)35.56mm
Tool Entering Angle ( Degree)10 Degree
ApplicationFacing | Helical Milling | Plunging | Ramping | Shouldering | Slotting
Coolant Through (Yes/No)Yes
Cutter PitchStandard Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes5
Number of Inserts5
