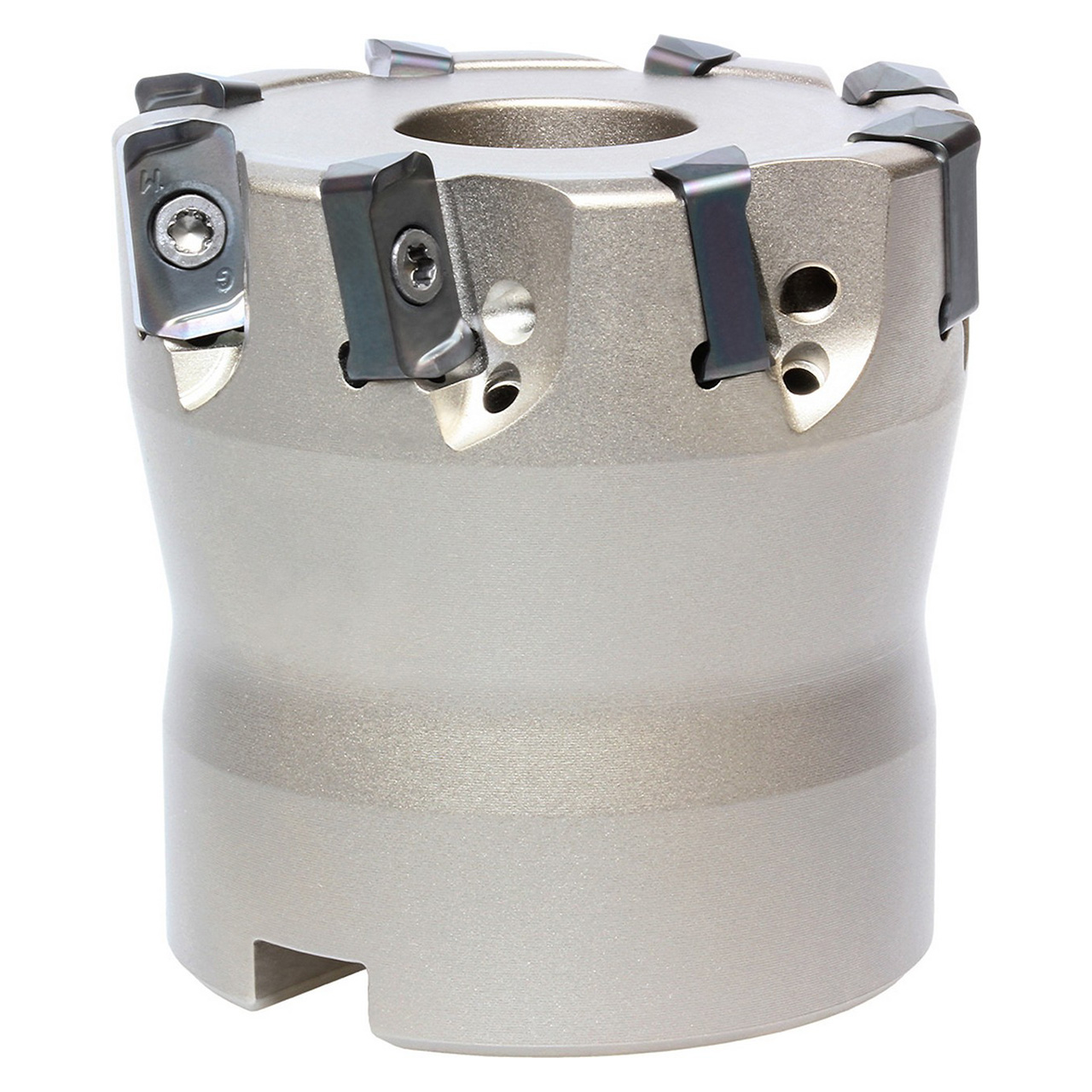

Features:
- 10 Degree Lead angle high feed face mill
- Application: facing, shouldering, slotting, ramping, helical milling, plunging
- Clamp screw insert holding design
- Compatible with (6) LOGU03 inserts
- Reduced chattering with convex cutting edge design controls initial impact when entering the workpiece
Product Specifications
| EDP Number | THN08327 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394" |
| Maximum Depth of Cut (mm) | 10.00mm |
| Cutting Diameter (Decimal Inch) | 1.2598 - 1.5748" |
| Cutting Diameter (mm) | 32.00 - 40.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.2598" |
| Cutting Diameter Minimum (mm) | 32.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.5748" |
| Cutting Diameter Maximum (mm) | 40.00mm |
| Cutting Diameter Maximum (mm) | 0.6299" |
| Connection Bore Diameter (mm) | 16.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.4961" |
| Contact Surface Diameter Machine Side (mm) | 38.00mm |
| Tool Entering Angle ( Degree) | 10 Degree |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 6 |
| Number of Inserts | 6 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-37/64"
Cutting Diameter (Decimal Inch):
1.5748"
Cutting Diameter (mm):
40.00mm
Maximum Depth of Cut (Inch):
3/64"
Maximum Depth of Cut (Decimal Inch):
0.0394"
Maximum Depth of Cut (mm):
1mm
Arbor Hole Diameter (Inch):
5/8"
Arbor Hole Diameter (Decimal Inch):
0.6299"
Arbor Hole Diameter (mm):
16.00mm
Series:
MFHI;Cutter Style=MFH"
Number of Cutter Inserts:
6
