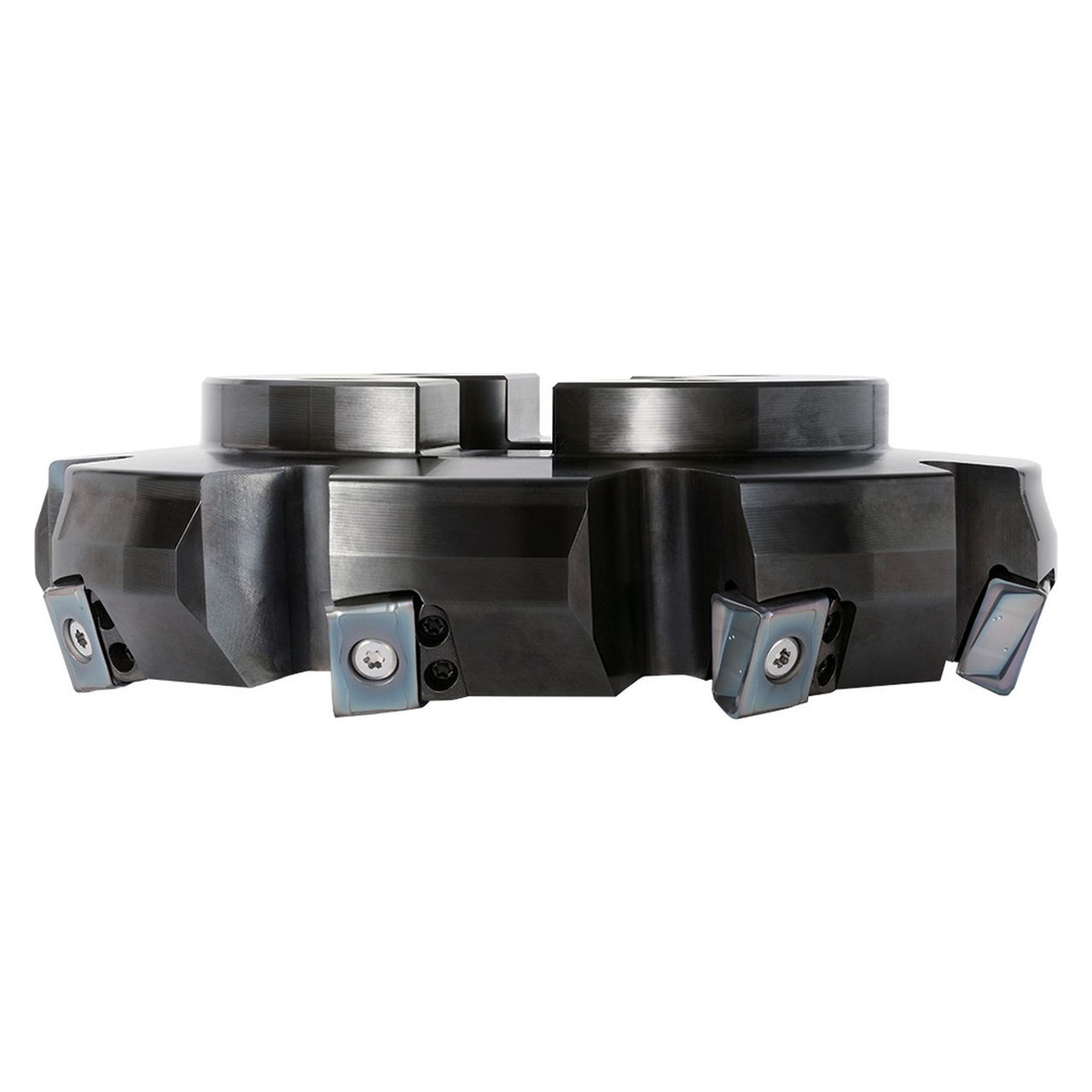

Features:
| EDP Number | THN08455 |
| Maximum Depth of Cut (Decimal Inch) | 0.6693" |
| Maximum Depth of Cut (mm) | 55.00mm |
| Cutting Diameter (Decimal Inch) | 9.8425 - 10.3543" |
| Cutting Diameter (mm) | 250.00 - 263.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 9.8425" |
| Cutting Diameter Minimum (mm) | 250.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 10.3543" |
| Cutting Diameter Maximum (mm) | 263.00mm |
| Cutting Diameter Maximum (mm) | 1.8752" |
| Connection Bore Diameter (mm) | 47.63mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 8.7402" |
| Contact Surface Diameter Machine Side (mm) | 222.00mm |
| Tool Entering Angle ( Degree) | 70 Degree |

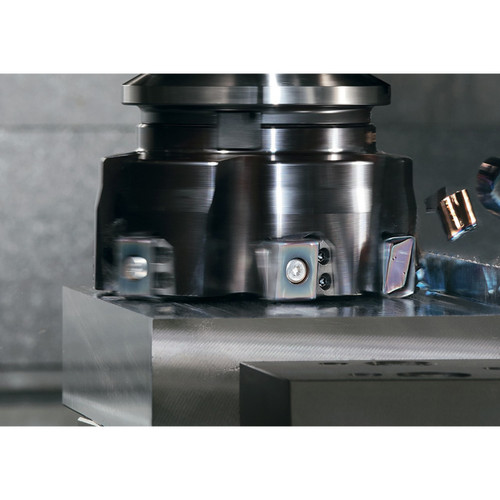

| Application | Chamfering, Facing, Shouldering |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 10 |
| Number of Inserts | 10 |
