Features:

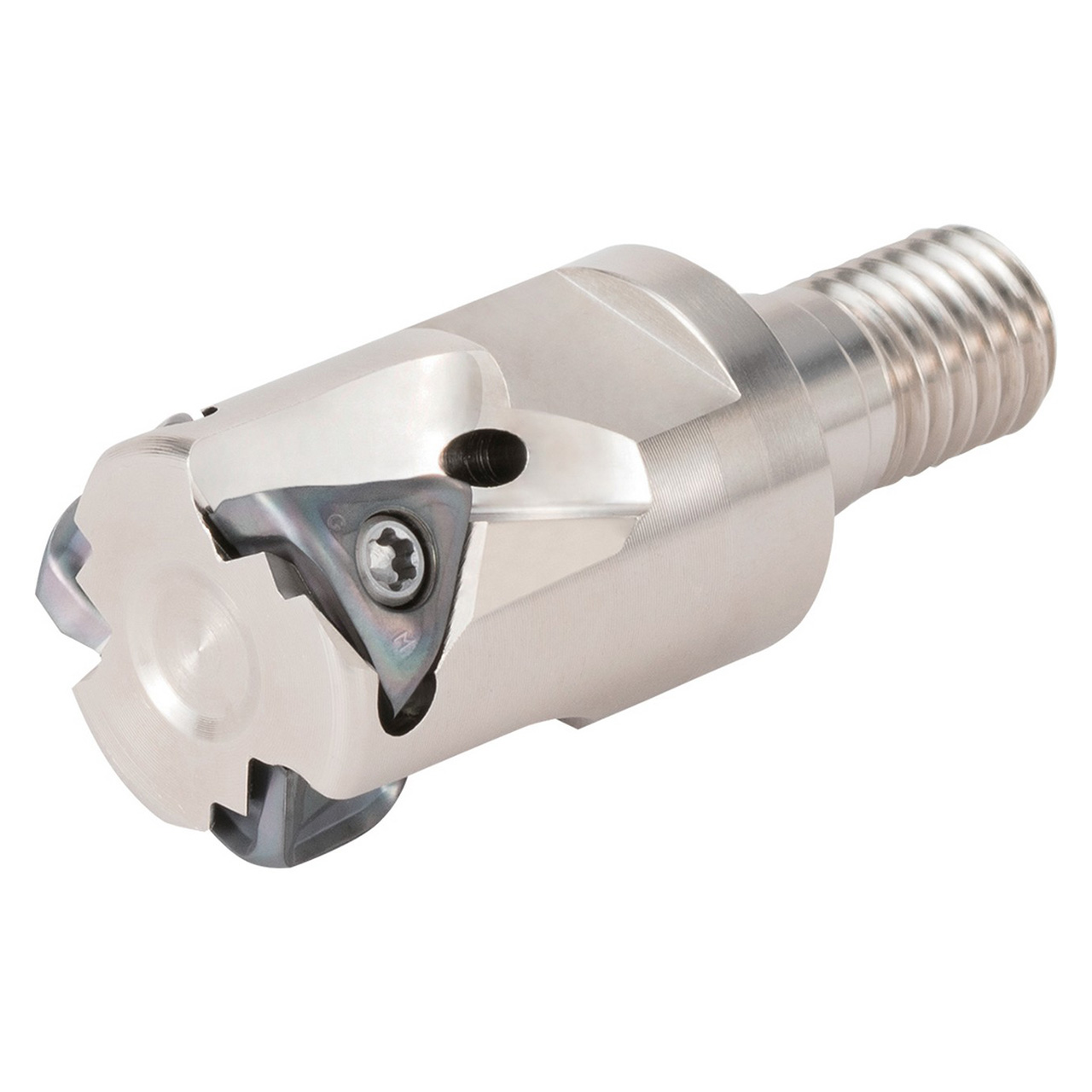

| EDP Number | THN08499 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Maximum Depth of Cut (mm) | 53.00mm |
| Cutting Diameter (Decimal Inch) | 1.2598" |
| Cutting Diameter (mm) | 32.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.2598" |
| Cutting Diameter Minimum (mm) | 32.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.2598" |
| Cutting Diameter Maximum (mm) | 32.00mm |
| Connection Diameter (Decimal Inch) | 0.6693" |
| Connection Diameter (mm) | 17.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.1811" |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Shank Height (Decimal Inch) | 0.9449" |
| Shank Height (mm) | 24.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 4 |
| Number of Inserts | 4 |
| Shank Type | Modular Connection |
