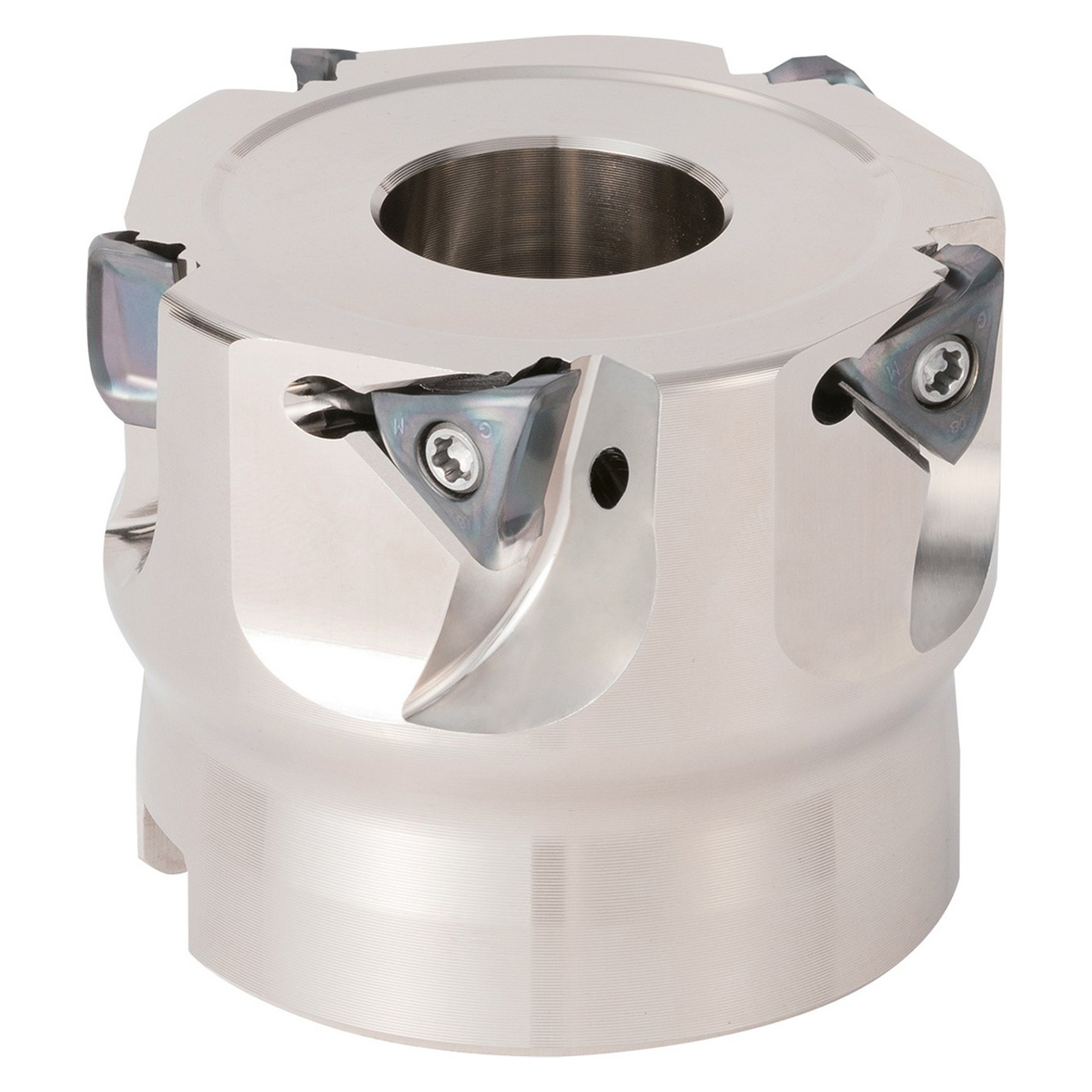

Features:
- 90 Degree Lead angle face mill
- Application: shouldering, facing, slotting, ramping, pocketing, helical ,milling, plunging
- New generation of high performance, economical, multi-function milling
- Low cutting forces and higher rigidity for excellent chatter resistance
- Longer insert and holder tool life
Product Specifications
| EDP Number | THN08502 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Maximum Depth of Cut (mm) | 53.00mm |
| Cutting Diameter (Decimal Inch) | 1.9685" |
| Cutting Diameter (mm) | 50.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.9685" |
| Cutting Diameter Minimum (mm) | 50.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.9685" |
| Cutting Diameter Maximum (mm) | 50.00mm |
| Cutting Diameter Maximum (mm) | 0.8661" |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.8898" |
| Contact Surface Diameter Machine Side (mm) | 48.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting |
| Coolant Through (Yes/No) | Yes |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 5 |
| Number of Inserts | 5 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-31/32"
Cutting Diameter (Decimal Inch):
1.9685"
Cutting Diameter (mm):
50.00mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Arbor Hole Diameter (Inch):
55/64"
Arbor Hole Diameter (Decimal Inch):
0.8661"
Arbor Hole Diameter (mm):
22.00mm
Series:
MEV;Cutter Style=MEV"
Number of Cutter Inserts:
5
