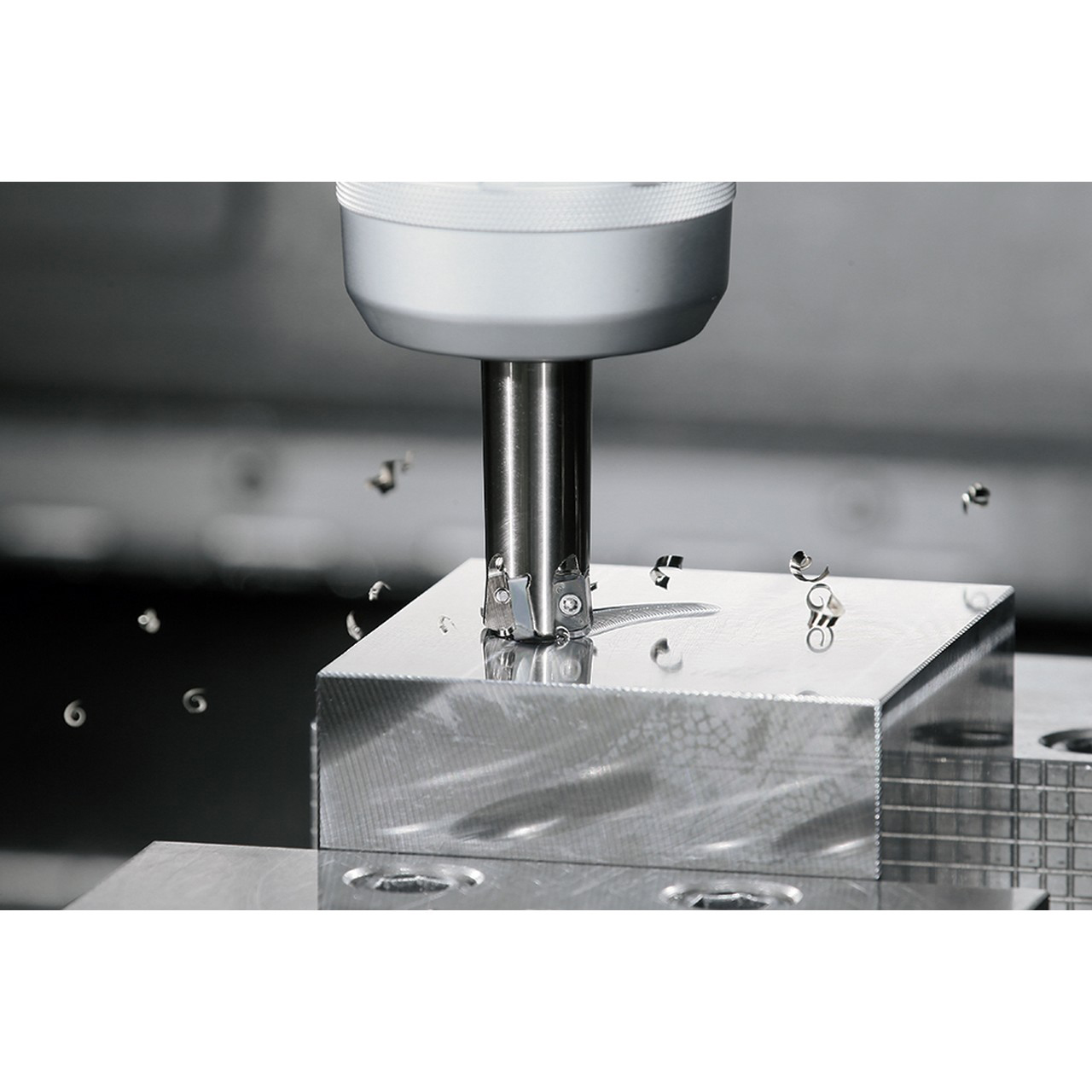

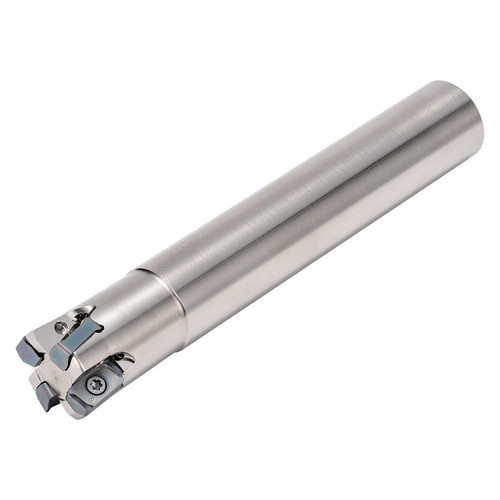

Features:
- Reduce cycle time during roughing applications
- Economical inserts with 4 cutting edges
- MFH-mini controls chip biting with convex cutting edge design
- Fine pitch availability for efficient machining
- Compatible with (5) LOGU03 style inserts
Product Specifications
| EDP Number | THN08571 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390" |
| Maximum Depth of Cut (mm) | 6mm |
| Cutting Diameter (Decimal Inch) | 0.9350 - 1.2500" |
| Cutting Diameter (mm) | 23.75 - 31.75mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.9350" |
| Cutting Diameter Minimum (mm) | 23.75mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.2500" |
| Cutting Diameter Maximum (mm) | 31.75mm |
| Connection Diameter (Decimal Inch) | 1.2500" |
| Connection Diameter (mm) | 31.75mm |
| Tool Entering Angle ( Degree) | 10 Degree |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 5 |
| Number of Inserts | 5 |
| Shank Type | Long Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-1/4"
Cutting Diameter (Decimal Inch):
1.2500"
Cutting Diameter (mm):
31.75mm
Maximum Depth of Cut (Inch):
1/32"
Maximum Depth of Cut (Decimal Inch):
0.0390"
Maximum Depth of Cut (mm):
0.99mm
Shank Type:
Long Length
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
Number of Cutter Inserts:
5
Toolholder Style:
MFH
