Features:

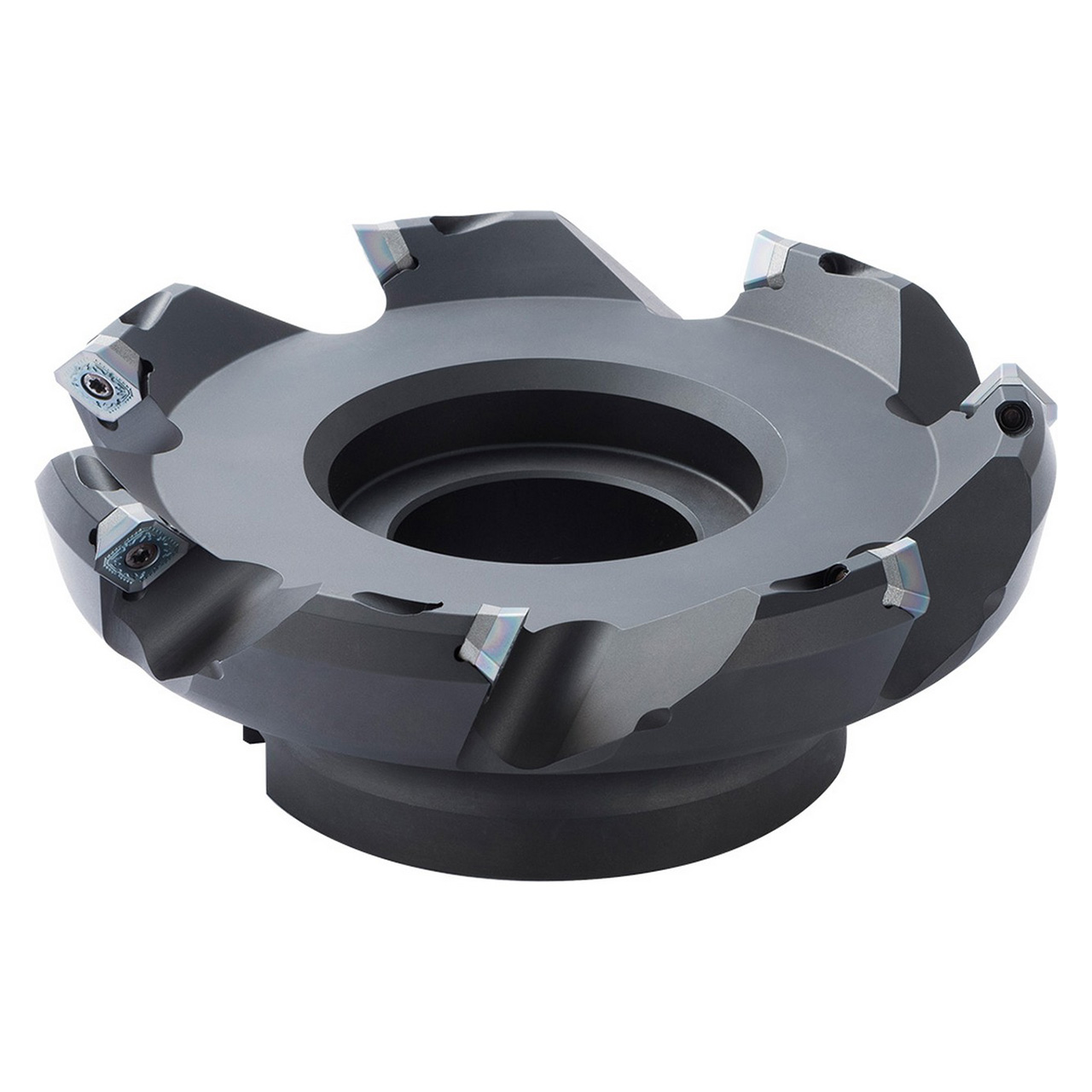

- 45 Degree Lead angle finishing face mill
- Longer tool life by reducing front edge runout
Product Specifications
| EDP Number | THN08601 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Maximum Depth of Cut (mm) | 8.00mm |
| Cutting Diameter (Decimal Inch) | 7.8740 - 8.2165" |
| Cutting Diameter (mm) | 200.00 - 208.70mm |
| Cutting Diameter Minimum (Decimal Inch) | 7.8740" |
| Cutting Diameter Minimum (mm) | 200.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 8.2165" |
| Cutting Diameter Maximum (mm) | 208.70mm |
| Cutting Diameter Maximum (mm) | 2.3622" |
| Connection Bore Diameter (mm) | 60.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 5.5906" |
| Contact Surface Diameter Machine Side (mm) | 142.00mm |
| Tool Entering Angle ( Degree) | 45 Degree |
| Application | Chamfering, Facing |
| Cutter Pitch | Coarse Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 8 |
| Number of Inserts | 8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Kyocera Precision Tools
Kyocera Precision Tools THN08589 | MFSE45200R8T 7.8740-8.2165" Diameter x 45 Degree Angle 8 Flute Steel Indexable Face Mill
$1,848.84
$1,534.54
Kyocera Precision Tools
Kyocera Precision Tools THN08590 | MFSE45200L8T 7.8740-8.2165" Diameter x 45 Degree Angle 8 Flute Steel Indexable Face Mill
$1,848.84
$1,534.54
Kyocera Precision Tools
Kyocera Precision Tools THN08594 | MFSE45200R9TW 7.8740-8.2165" Diameter x 45 Degree Angle 9 Flute Steel Indexable Face Mill
$2,508.21
$2,081.81
Kyocera Precision Tools
Kyocera Precision Tools THN08468 | MFLN45200R8T 7.8740-8.8189" Diameter x 45 Degree Angle 8 Flute Steel Indexable Face Mill
$1,886.52
$1,565.81
Kyocera Precision Tools
Kyocera Precision Tools THN08475 | MFLN45200R8TM 7.8740-8.8189" Diameter x 45 Degree Angle 8 Flute Steel Indexable Face Mill
$1,886.52
$1,565.81
Kyocera Precision Tools

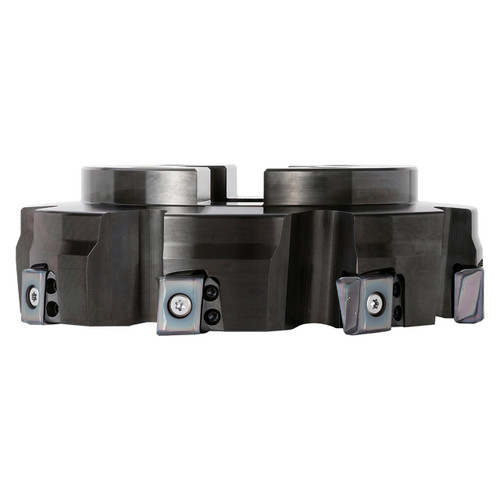

Kyocera Precision Tools THN08447 | MFLN90200R8TM 7.8740" Diameter x 90 Degree Angle 8 Flute Steel Indexable Face Mill
$1,886.56
$1,565.84
Kyocera Precision Tools
Kyocera Precision Tools THN04485 | MFPN45200R10TM 7.8740-8.3858" Diameter x 45 Degree Angle 10 Flute Steel Indexable Face Mill
$2,649.97
$2,199.48
Kyocera Precision Tools
Kyocera Precision Tools THN04495 | MFPN45200R14TM 7.8740-8.3858" Diameter x 45 Degree Angle 14 Flute Steel Indexable Face Mill
$2,035.03
$1,689.07
Kyocera Precision Tools
Kyocera Precision Tools THN08440 | MFLN90200R8T 7.8740" Diameter x 90 Degree Angle 8 Flute Steel Indexable Face Mill
$1,886.56
$1,565.84
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
8-7/32"
Cutting Diameter (Decimal Inch):
8.2165"
Cutting Diameter (mm):
208.70mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Arbor Hole Diameter (Inch):
2-23/64"
Arbor Hole Diameter (Decimal Inch):
2.3622"
Arbor Hole Diameter (mm):
60.00mm
Series:
MFSE;Cutter Style=MFSE"
Number of Cutter Inserts:
8
interval quantity:
1
