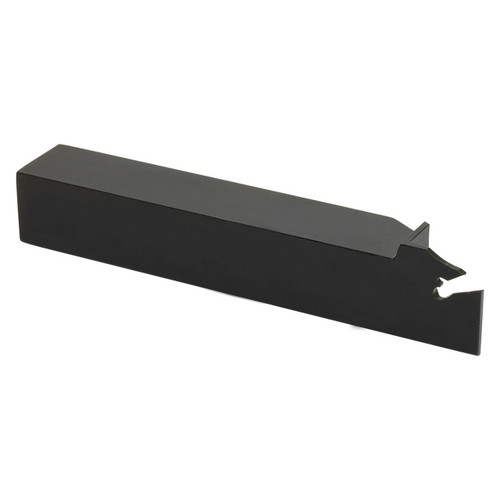

Kyocera Precision Tools THP06025 | KTKHL1212H2S 0.4724" Shank Width x 1.2992" Max Cut Of Depth x 0.4724" Shank Height Steel Cut-Off Toolholder

$208.75 $173.26
(You save $35.49)
Brand:
Kyocera Precision Tools
Hand of Holder:
Left-Hand
1.2992":
Maximum Workpiece Diameter (mm)
33.00mm:
Series;KTKC=Toolholder Style"
KTKH-S:
Shank Width/Diameter (Decimal Inch)
0.4724":
Shank Width/Diameter (mm)
12.00mm:
Shank Height (Decimal Inch)
0.4724":
Shank Height (mm)
SKU:
23234230
UPC:
Weight:
0.29 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Left-Hand KTKH-S toolholder
  • Application : cut-off
  • Insert holding design
  • Compatible with Left-Hand TKN2, TKN2.4, TKN2-P, TKL2, TKL2.4, TKL2-P inserts

Product Specifications
EDP NumberTHP06025
Maximum Depth of Cut (mm)6.00mm
Shank Width (mm)12.00mm
Maximum Cut-Off Diameter (Decimal Inch)1.2992"
Maximum Cut-Off Diameter (mm)33.00mm
Shank Height (Decimal Inch)0.4724"
Shank Height (mm)12.00mm
ApplicationCut-Off
HandLeft Hand
Insert Holding MethodSelf-Clamp
MaterialSteel
