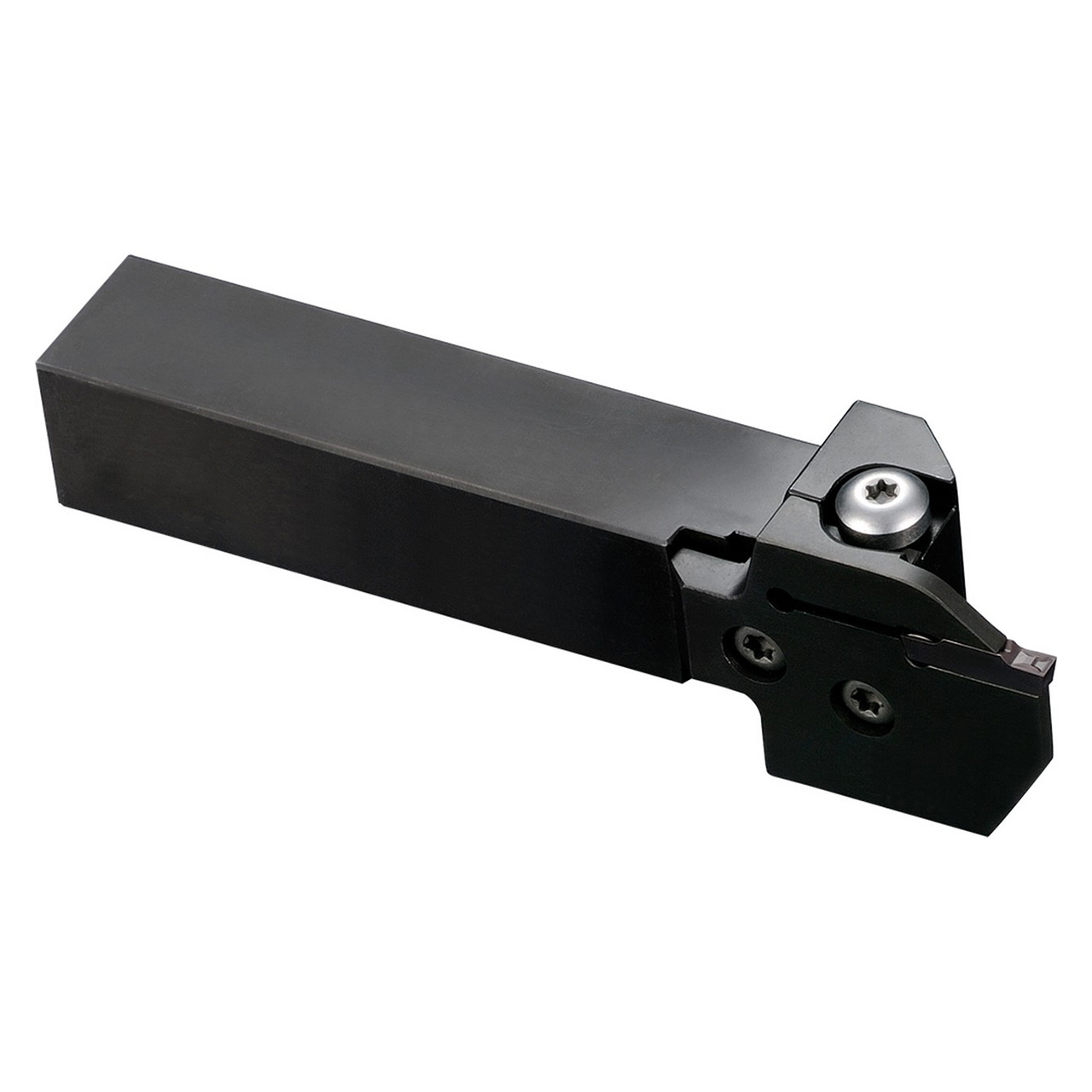

Kyocera Precision Tools THT05143 | KGDL16X3T20S 1.0000" Shank Width x 1.0000" Shank Height Steel External Grooving Toolholder

$275.53 $228.69
(You save $46.84)
Brand:
Kyocera Precision Tools
Toolholder Type:
External Grooving
Hand of Holder:
Left-Hand
Maximum Depth of Cut (Decimal Inch):
0.7874"
Maximum Depth of Cut (mm):
20.00mm
Toolholder Style:
KGD-S
Shank Height (Decimal Inch):
1.0000"
Shank Height (mm):
25.40mm
Shank Width/Diameter (Decimal Inch):
1.0000"
Shank Width/Diameter (mm):
25.40mm
Series:
KGD;Through Coolant=No"
interval quantity:
1
SKU:
23234813
UPC:
Weight:
0.36 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • High rigidity switch blade style holder
  • ‌Adaptable to a wide range of applications by swapping out blades
  • Various edge widths and cutting depths can be achieved by changing the blade and toolholder combination
  • Compatible with GDM3, GDMS3, GDG3, GDGS3, GDM4, GDMS4, GDG4, GDGS4 inserts

Product Specifications
EDP NumberTHT05143
Maximum Depth of Cut (mm)5.00mm
Shank Width (mm)25.40mm
Max Depth of Cut (Decimal Inch)0.7874"
Max Depth of Cut (mm)20.00mm
Cutting Width (Decimal Inch)0.1181 - 0.1575"
Cutting Width (mm)3.00 - 4.00mm
Cutting Width Minimum (Decimal Inch)0.1181"
Cutting Width Minimum (mm)3.00mm
Cutting Width Maximum (Decimal Inch)0.1575"
Cutting Width Maximum (mm)4.00mm
Shank Height (Decimal Inch)1.0000"
Shank Height (mm)25.40mm
ApplicationCut-Off | External Grooving
Grooving TypeExternal Grooving
HandLeft Hand
Insert Holding MethodScrew
MaterialSteel
