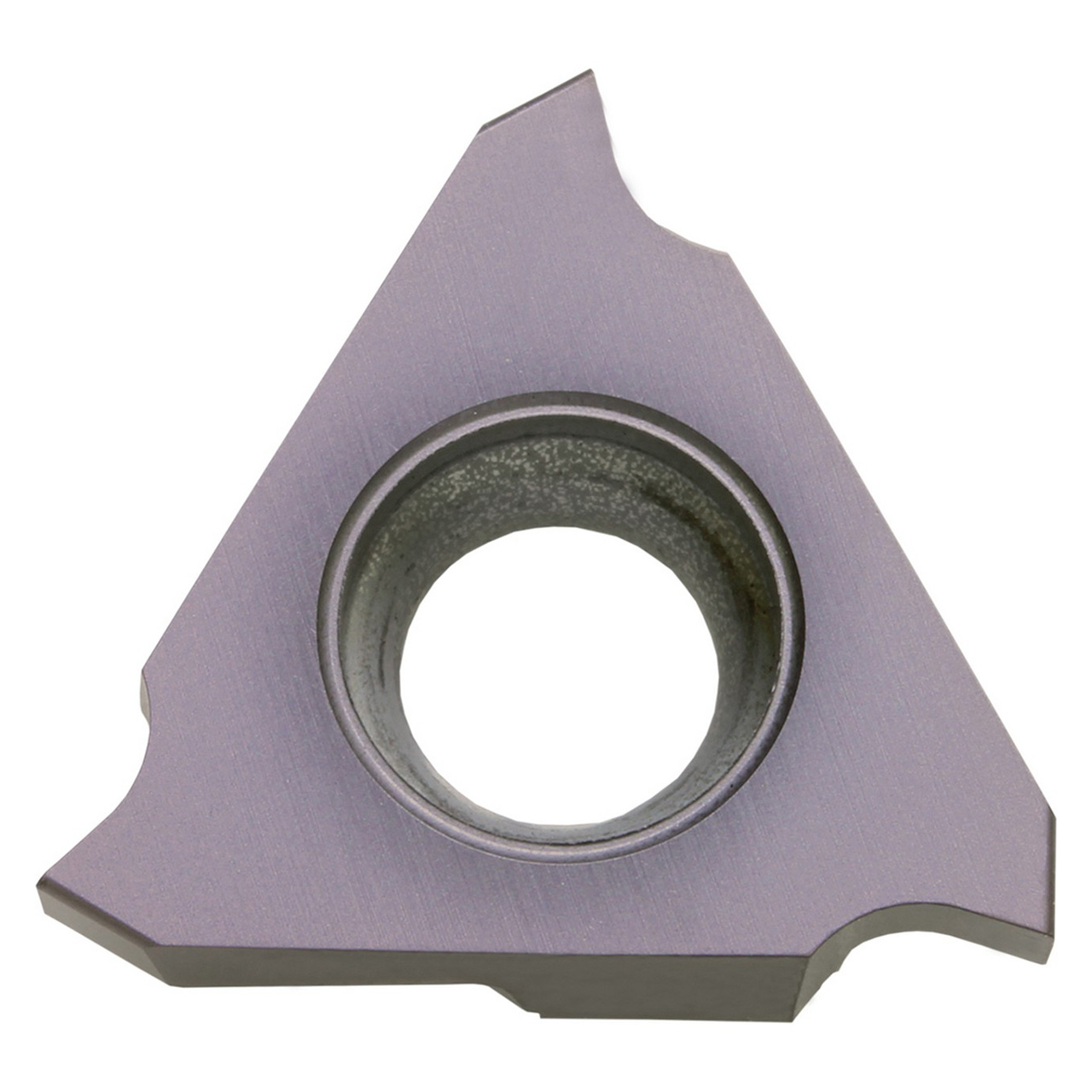

Kyocera Precision Tools TJB89032 | GBA43R110N PV7040 0.1102" Cutting Width x 3/16" Thickness PVD Coated Cermet Grooving Insert

$21.71
Brand:
Kyocera Precision Tools
Insert Style:
GBA
Insert Size:
43
Material:
Cermet;Cutting Width (Decimal Inch)=0.1102"""
Cutting Width (mm):
2.80mm
Maximum Depth of Cut (Decimal Inch):
0.1575"
Maximum Depth of Cut (mm):
4.00mm
Manufacturer's Grade:
PV7040
Finish/Coating:
PVD
SKU:
23235218
Weight:
0.22 LBS
Minimum Purchase:
5 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • 3 Cutting edges
  • MEGACOAT coating technology on super micro-grain cermet
  • Application: Grooving of steel

Product Specifications
Tool NumberTJB89032
Max Depth of Cut (Decimal Inch)0.1575"
Max Depth of Cut (mm)4.00mm
Cutting Width (Decimal Inch)0.1102"
Cutting Width (mm)2.80mm
Cutting Width Minimum (Decimal Inch)0.1102"
Cutting Width Minimum (mm)2.80mm
Cutting Width Maximum (Decimal Inch)0.1102"
Cutting Width Maximum (mm)2.80mm
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Corner Radius (Inch)0.012"
Corner Radius (mm)0.30mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationExternal Grooving
ChipbreakerN
Coating ProcessPVD
Cutting RangeFinishing
HandRight Hand
Insert Holding MethodScrew or Clamp
Insert GradePV7040
Insert Size43
MaterialCermet
Number of Cutting Edges3
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
