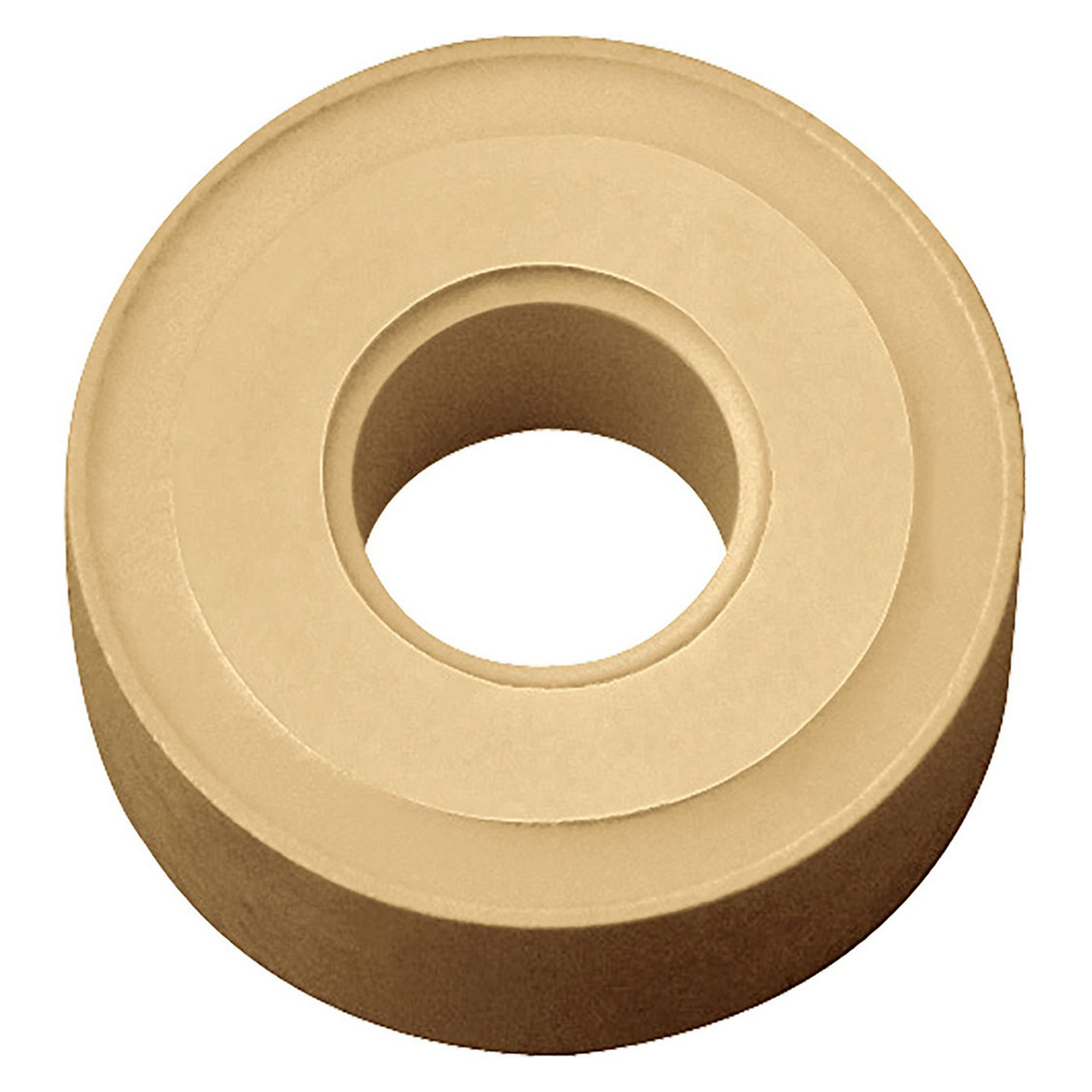

Kyocera Precision Tools TJR04432 | RNMG54 CA5525 5/8" Circle Diameter x 1/4" Thickness CVD Coated Carbide Indexable Turning Insert

$15.01
Brand:
Kyocera Precision Tools
Insert Style:
RNMG
Insert Size:
54
Material:
Carbide;Inscribed Circle (Inch)=5/8"""
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.875mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Manufacturer's Grade:
CA5525
SKU:
23236229
Weight:
0.37 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, undercutting
  • Improved toughness and wear resistance due to tougher carbide substrate and micro columnar structure of coating composition
  • Application: For roughing to interrupted machining of steel

Product Specifications
EDP NumberTJR04432
Inscribed Circle (Inch)5/8"
Inscribed Circle (mm)15.875mm
Thickness (Inch)1/4"
Thickness (mm)6.35mm
ApplicationExternal Turning | Facing | Undercutting
Coating ProcessCVD
Cutting RangeMedium Roughing
HandNeutral
Insert GradeCA5525
Insert Holding MethodScrew or Clamp
Insert ShapeRound
Insert Size54
MaterialCarbide
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption
