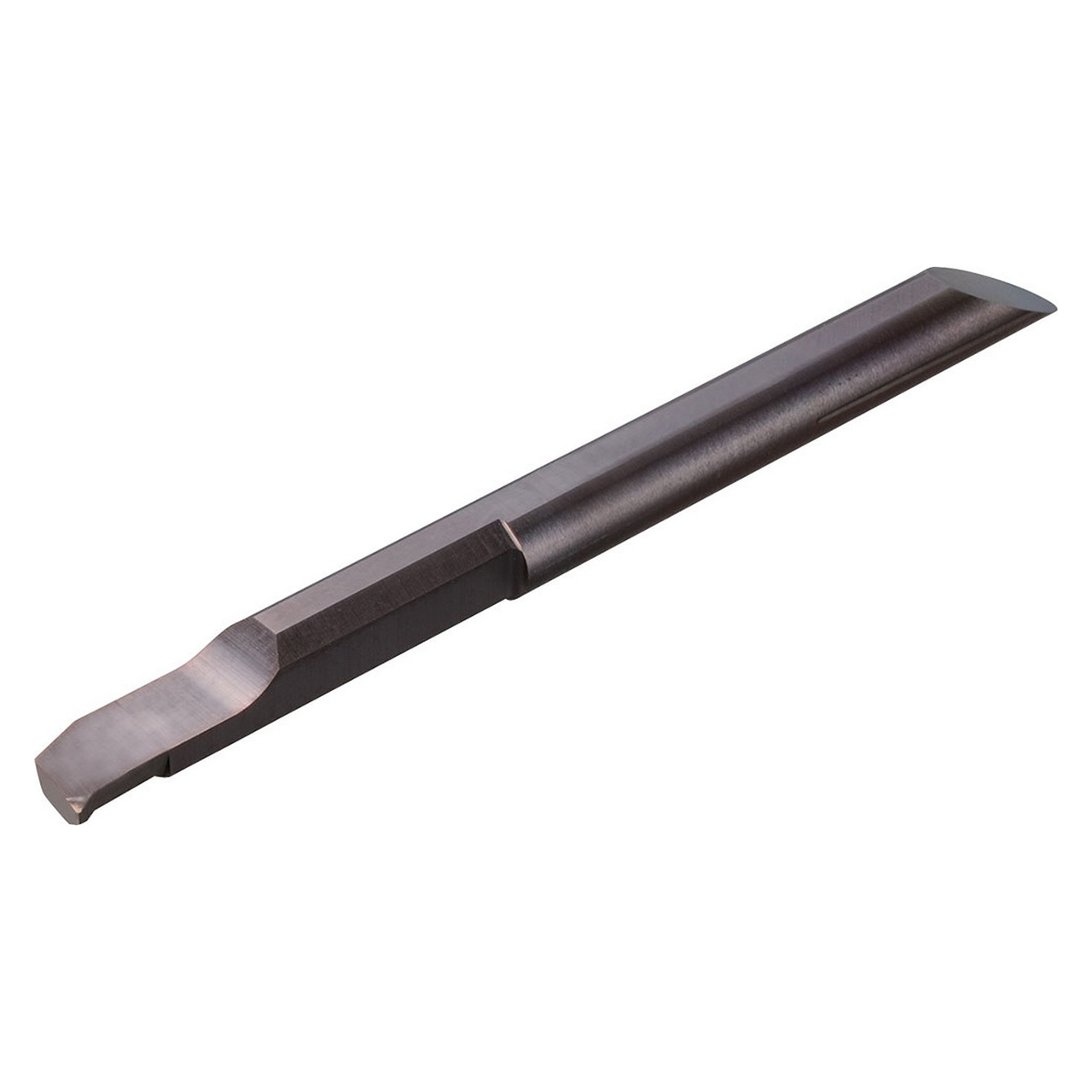

Features:
- Adjustable overhang length (EZ Adjust structure)
- Minimized deviation of the cutting diameter

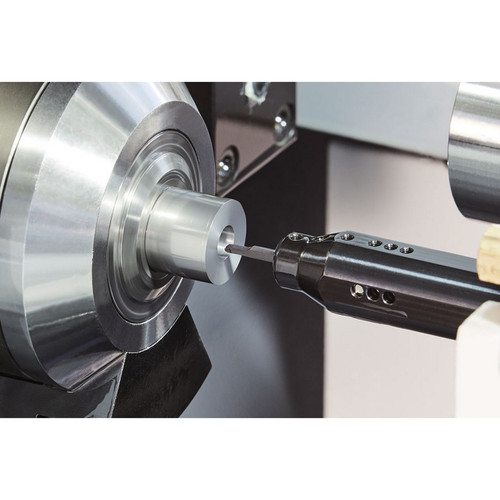

- Various EZ bar sizes and styles for a wide range of small internal machining applications
- ST style for general machining
- F chipbreaker for sharp edge, finishing
Product Specifications
| EDP Number | TKB03068 |
| Shank Width (Decimal Inch) | 1.0000" |
| Connection Diameter (Decimal Inch) | 0.1575" |
| Connection Diameter (mm) | 4.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.1772" |
| Minimum Bore Diameter (mm) | 4.50mm |
| Shank Height (Decimal Inch) | 0.1496" |
| Shank Height (mm) | 3.80mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Usable Length (Decimal Inch) | 0.7874" |
| Usable Length (mm) | 20.00mm |
| Corner Radius (Decimal Inch) | 0.006" |
| Corner Radius (mm) | 0.15mm |
| Application | Micro Boring |
| Coating Process | PVD |
| Hand | Right Hand |
| Insert Grade | PR1225 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Primary Workpiece Material | Steel (P) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
EZB;Minimum Bore Diameter (Decimal Inch)=0.1772"""
Minimum Bore Diameter (mm):
4.50mm
Maximum Bore Depth (Decimal Inch):
0.7874"
Maximum Bore Depth (mm):
20.00mm
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
