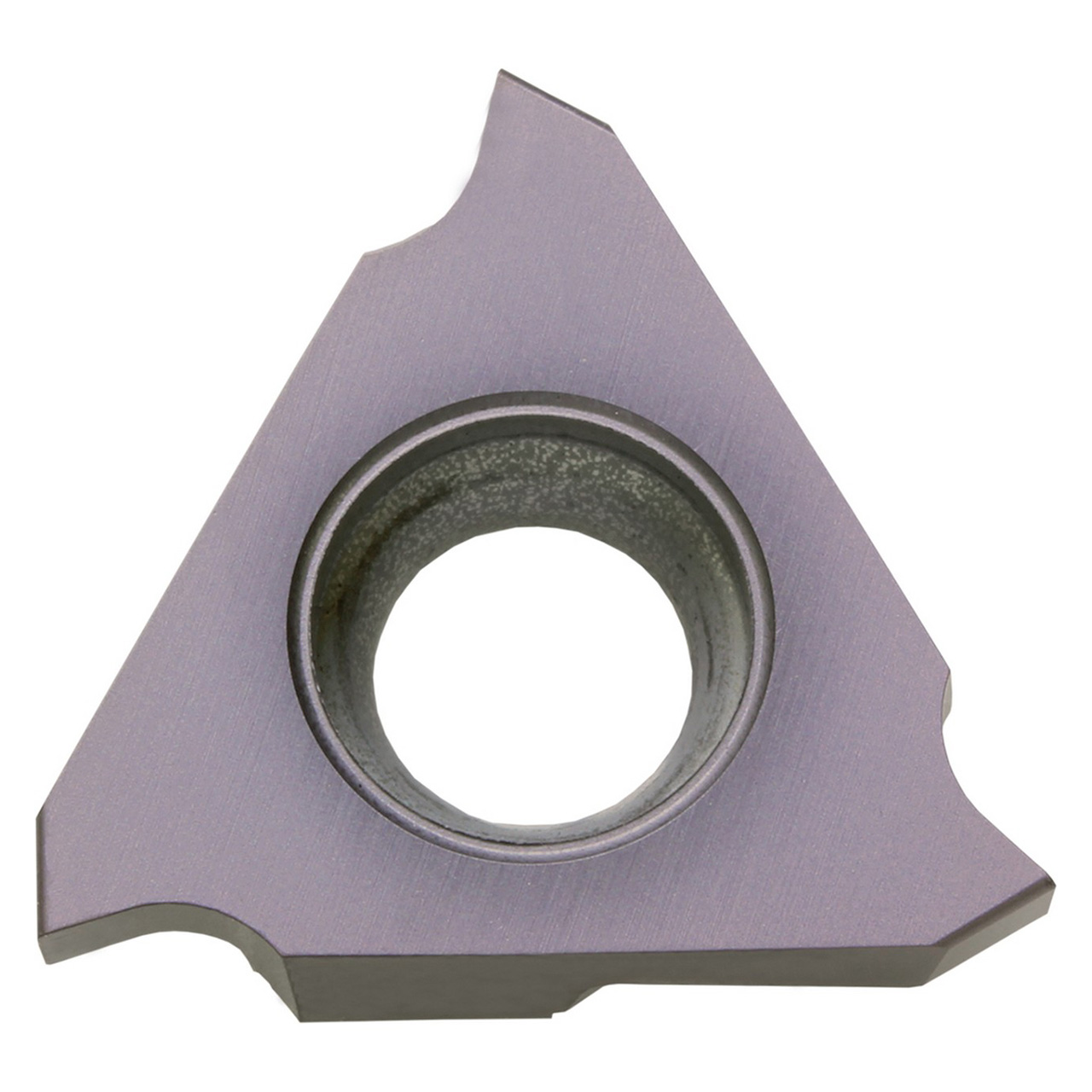

Kyocera Precision Tools TKT06425 | GBA43L150020 PR930 0.0591" Cutting Width x 3/16" Thickness PVD Coated Carbide Grooving Insert

$31.70
Brand:
Kyocera Precision Tools
Insert Style:
GBA
Insert Size:
43
Material:
Carbide;Cutting Width (Decimal Inch)=0.0591"""
Cutting Width (mm):
1.50mm
Maximum Depth of Cut (Decimal Inch):
0.1378"
Maximum Depth of Cut (mm):
3.50mm
Manufacturer's Grade:
PR930
Finish/Coating:
PVD
SKU:
23239945
Weight:
0.24 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • 3 Cutting edges
  • Hard TiCN base PVD coated super micro-grain carbide
  • Application: Low cutting speed, precise cutting with sharp edge

Product Specifications
Tool NumberTKT06425
Max Depth of Cut (Decimal Inch)0.1378"
Max Depth of Cut (mm)3.50mm
Cutting Width (Decimal Inch)0.0591"
Cutting Width (mm)1.50mm
Cutting Width Minimum (Decimal Inch)0.0591"
Cutting Width Minimum (mm)1.50mm
Cutting Width Maximum (Decimal Inch)0.0591"
Cutting Width Maximum (mm)1.50mm
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationExternal Grooving
Coating ProcessPVD
Cutting RangeFinishing Medium
HandLeft Hand
Insert Holding MethodScrew or Clamp
Insert GradePR930
Insert Size43
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialSteel (P)
Usage ClassificationLight Interruption
