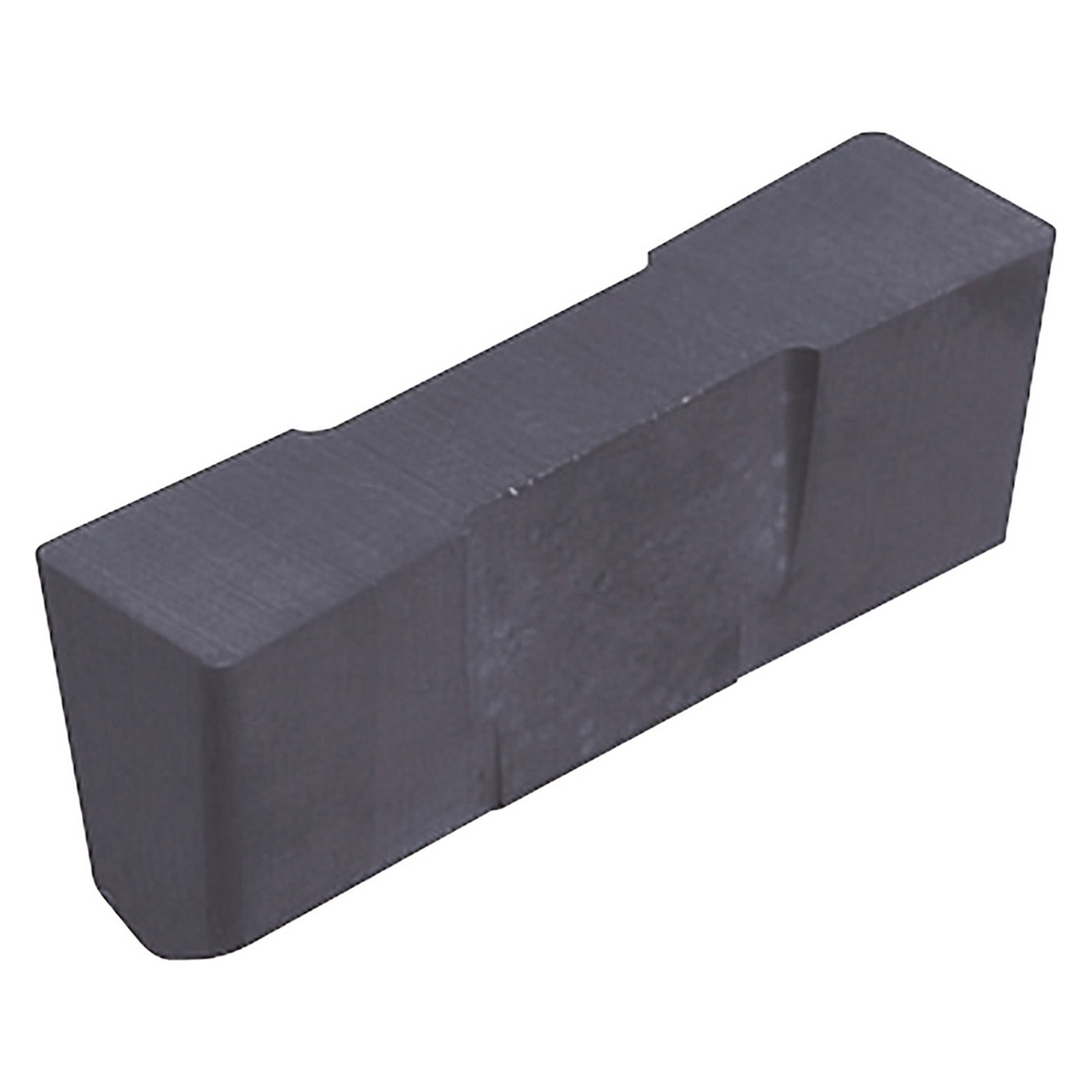

Kyocera Precision Tools TKT07590 | GH1002505 PR930 0.3937" Cutting width x 0.9843" Insert Length PVD Coated Carbide Grooving Insert

$87.83 $50.94
(You save $36.89)
Brand:
Kyocera Precision Tools
Insert Style:
GH
Insert Size:
1002505
Material:
Carbide;Cutting Width (Decimal Inch)=0.3937"
Cutting Width (mm):
10.00mm
Maximum Depth of Cut (Decimal Inch):
0.6693"
Maximum Depth of Cut (mm):
17.00mm
Finish/Coating:
PVD
interval quantity:
10
SKU:
23240020
UPC:
Weight:
0.37 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Features:

  • Insert for external deep grooving
  • Ground chipbreaker
  • 2 Cutting edges
  • Hard TiCN base PVD coated super micro-grain carbide
  • Application: Low cutting speed, precise cutting with sharp edge

Product Specifications
Tool NumberTKT07590
Max Depth of Cut (Decimal Inch)0.6693"
Max Depth of Cut (mm)17.00mm
Cutting Width (Decimal Inch)0.3937"
Cutting Width (mm)10.00mm
Cutting Width Minimum (Decimal Inch)0.3937"
Cutting Width Minimum (mm)10.00mm
Cutting Width Maximum (Decimal Inch)0.3937"
Cutting Width Maximum (mm)10.00mm
Insert Length (Decimal Inch)0.9843"
Insert Length (mm)25.00mm
Corner Radius (Inch)0.020"
Corner Radius (mm)0.50mm
Thickness (Inch)0.295"
Thickness (mm)7.50mm
ApplicationExternal Deep Grooving | External Grooving
Coating ProcessPVD
Cutting RangeFinishing Medium
HandNeutral
Insert Holding MethodClamp
Insert GradePR930
Insert Size1002505
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialSteel (P)
Usage ClassificationLight Interruption

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
