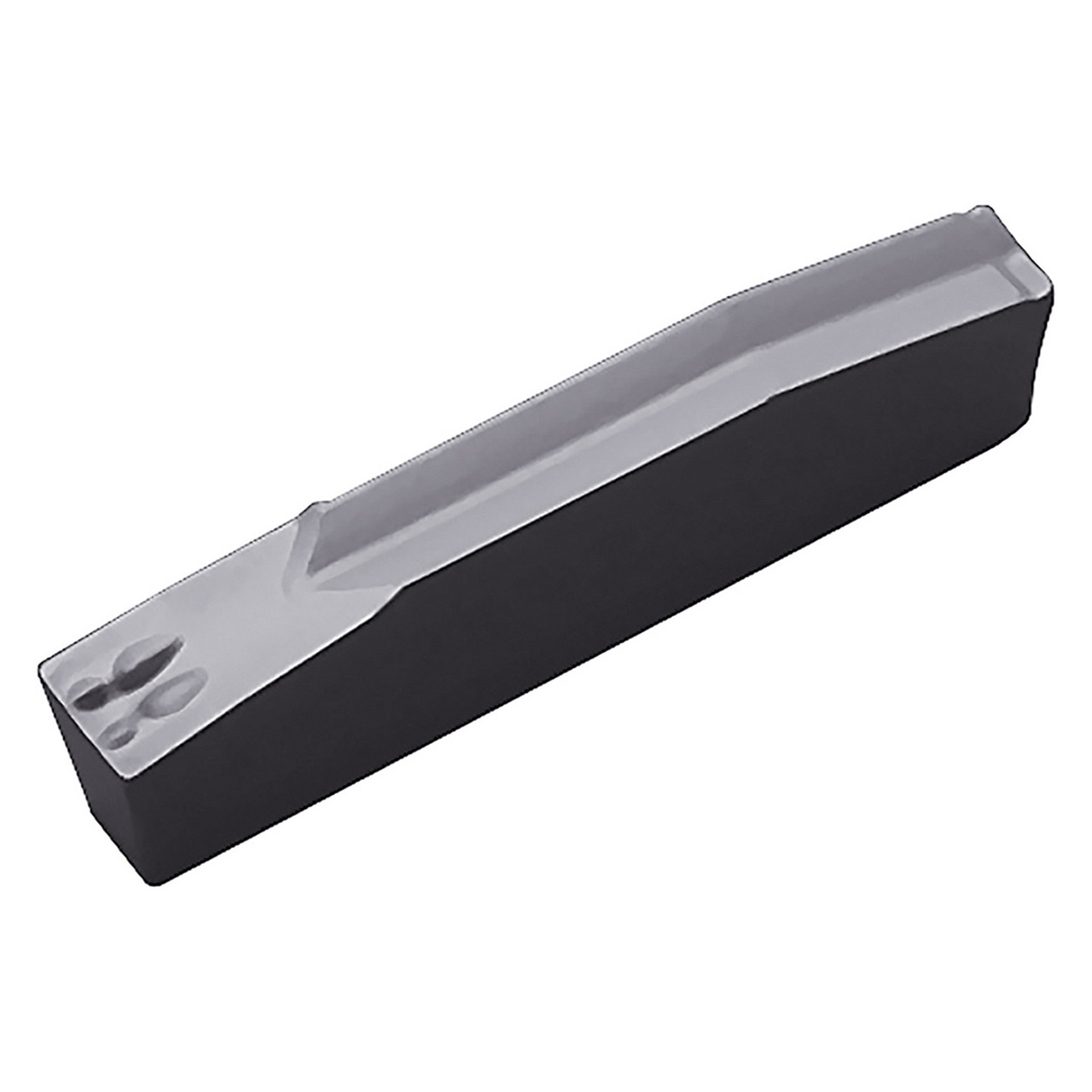

Features:
- Insert for deep grooving, cut-off
- 1-Edge
- 1 Cutting edge
- Hard TiCN base PVD coated super micro-grain carbide
- Application: Low cutting speed, precise cutting with sharp edge
Product Specifications
| Tool Number | TKT12650 |
| Max Depth of Cut (Decimal Inch) | 0.9843" |
| Max Depth of Cut (mm) | 25.00mm |
| Cutting Width (Decimal Inch) | 0.1969" |
| Cutting Width (mm) | 5.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1969" |
| Cutting Width Minimum (mm) | 5.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1969" |
| Cutting Width Maximum (mm) | 5.00mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 1/32" |
| Corner Radius (mm) | 0.80mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |
| Application | Cut-Off | External Deep Grooving | External Grooving |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | PR930 |
| Insert Size | 5 |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GMN
Insert Size:
5
Material:
Carbide;Cutting Width (Decimal Inch)=0.1969"""
Cutting Width (mm):
5.00mm
Maximum Depth of Cut (Decimal Inch):
0.9843"
Maximum Depth of Cut (mm):
25.00mm
Manufacturer's Grade:
PR930
Finish/Coating:
PVD
