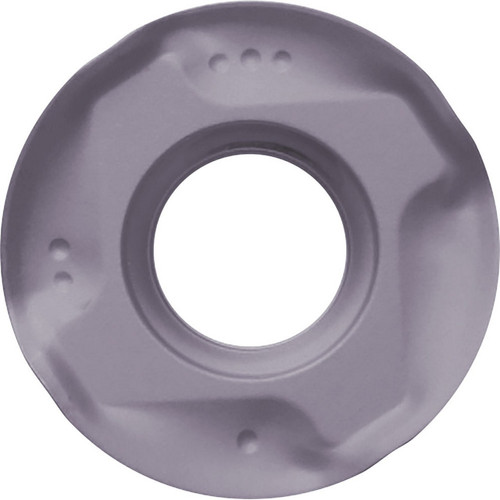

- Insert for radius milling, facing, shouldering
- Honed edge/general purpose with stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Application: PVD for titanium alloy and precipitation hardened stainless steel
Product Specifications
EDP Number | TLC01100 |
Inscribed Circle (Inch) | 0.472" |
[IC] Inscribed Circle (mm) | 12.00mm |
[INSL] Insert Length (Decimal Inch) | 0.4646" |
[INSL] Insert Length (mm) | 11.80mm |
[S] Thickness (Inch) | 0.187" |
[S] Thickness (mm) | 4.75mm |
Application | Contouring | Facing | Plunging | Profiling | Shouldering |
Chipbreaker | M0ER-GM |
Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
1204
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.4700"
Inscribed Circle (mm):
12.00mm
Thickness (Decimal Inch):
0.1900"
Thickness (mm):
4.75mm
