- Insert for contouring, facing, helical milling, plunging, pocketing, ramping, shouldering, slotting
- Honed edge/general purpose with 3 cutting edges
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Application: PVD for titanium alloy and precipitation hardened stainless steel
Product Specifications

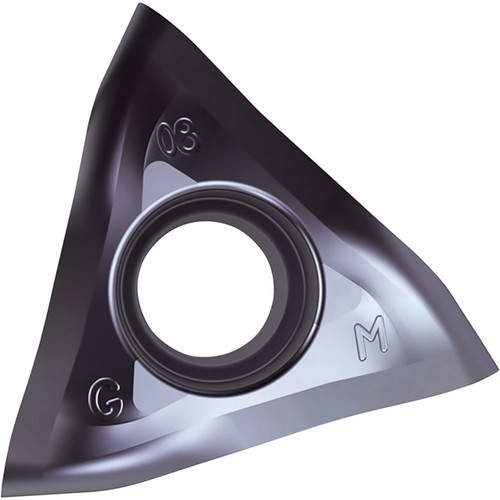

| EDP Number | TLC40005 |
| Insert Included Angle (Degree) | 60 Degree |
| Inscribed Circle (Inch) | 0.283" |
| [IC] Inscribed Circle (mm) | 7.20mm |
| [RE] Corner Radius (Inch) | 1/32" |
| [RE] Corner Radius (mm) | 0.80mm |
| [S] Thickness (Inch) | 0.224" |
| [S] Thickness (mm) | 5.70mm |
| Application | Contouring | Facing | Helical Milling | Plunging | Pocketing | Ramping | Shouldering | Slotting |
| Chipbreaker | ER-GM |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
060508
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.2800"
Inscribed Circle (mm):
7.20mm
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.70mm
