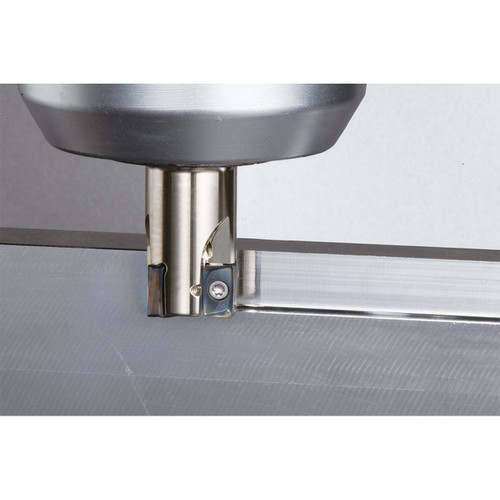

- Insert for facing, shouldering, slotting, helical milling
- Honed edge/tough edge (Heavy milling )
- Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
- Resists heat concentration at the cutting edge to promote stable machining
- Application: General purpose grade with excellent wear resistance and stability for continuous to light interrupted heat-resistant alloys
Product Specifications
| EDP Number | TLJ59001 |
| Insert Included Angle (Degree) | 90 Degree |
| [RE] Corner Radius (Inch) | 1/32" |
| [RE] Corner Radius (mm) | 0.80mm |
| [S] Thickness (Inch) | 0.157" |
| [S] Thickness (mm) | 4.00mm |
| Application | Facing | Helical Milling | Shouldering | Slotting |
| Chipbreaker | ER-GH |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
100408
Material:
Carbide;Finish/Coating=PVD
Thickness (Decimal Inch):
0.1600"
Thickness (mm):
4.00mm
