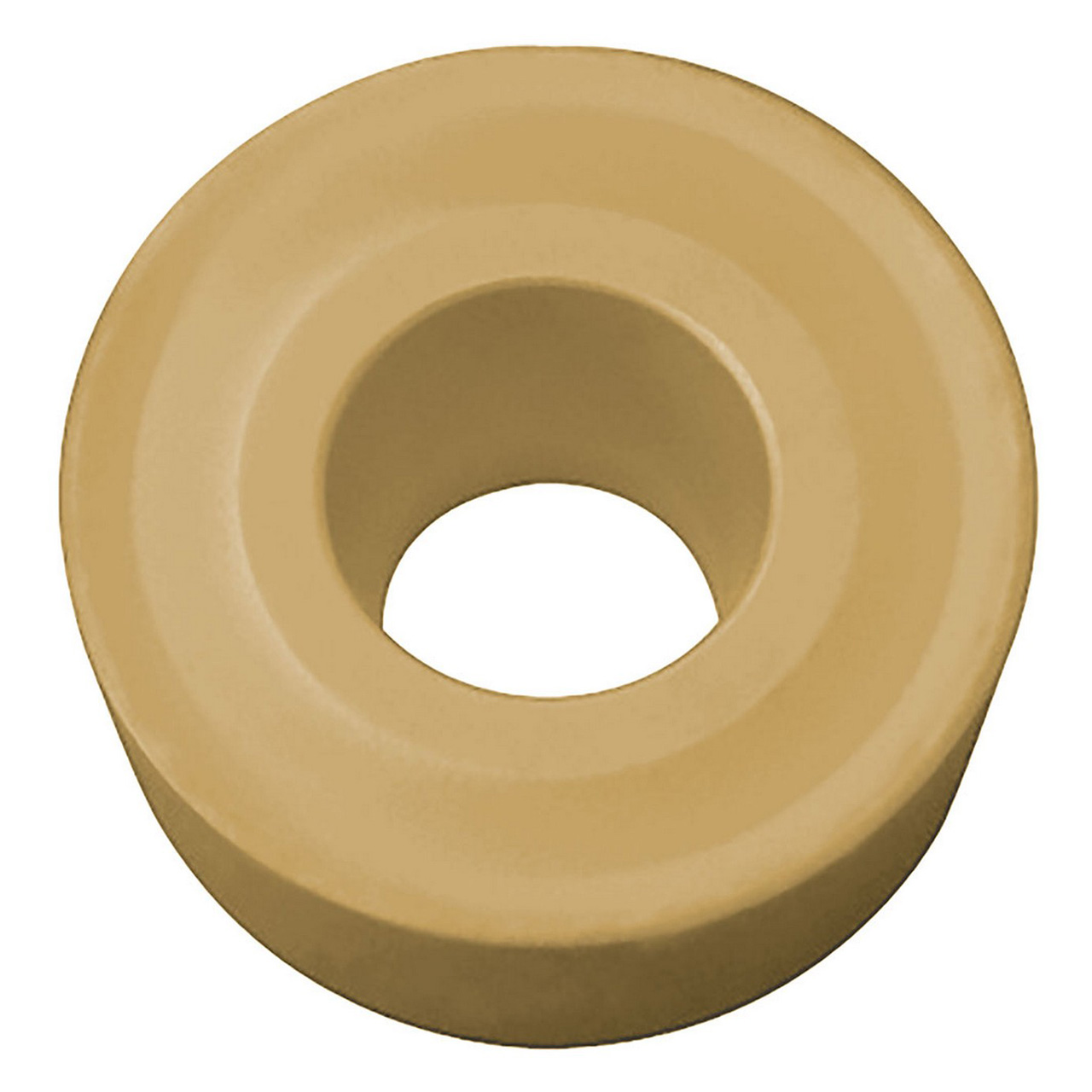

Kyocera Precision Tools TLP00251 | RCMX1204M0PV730 0.472" Inscribed Circle x 3/16" Thickness x 7 Degree Clearance Angle PVD Coated Cermet ISOI Indexable Turning Insert

$19.90 $11.54
(You save $8.36)
Brand:
Kyocera Precision Tools
Insert Style:
RCMX
Insert Size:
1204
Material:
Cermet;Inscribed Circle (Decimal Inch)=0.4720"""
Inscribed Circle (mm):
12.00mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
interval quantity:
10
SKU:
23246272
UPC:
Weight:
0.09 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, undercutting
  • Heavy interruption and medium of (P) carbon/alloy steel

Product Specifications
EDP NumberTLP00251
Inscribed Circle (Inch)0.472"
Inscribed Circle (mm)12.00mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationExternal Turning | Facing | Undercutting
Coating ProcessPVD
Cutting RangeMedium
HandNeutral
Insert GradePV730
Insert Holding MethodScrew or Clamp
Insert ShapeRound
Insert Size1204
MaterialCermet
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationHeavy Interruption
