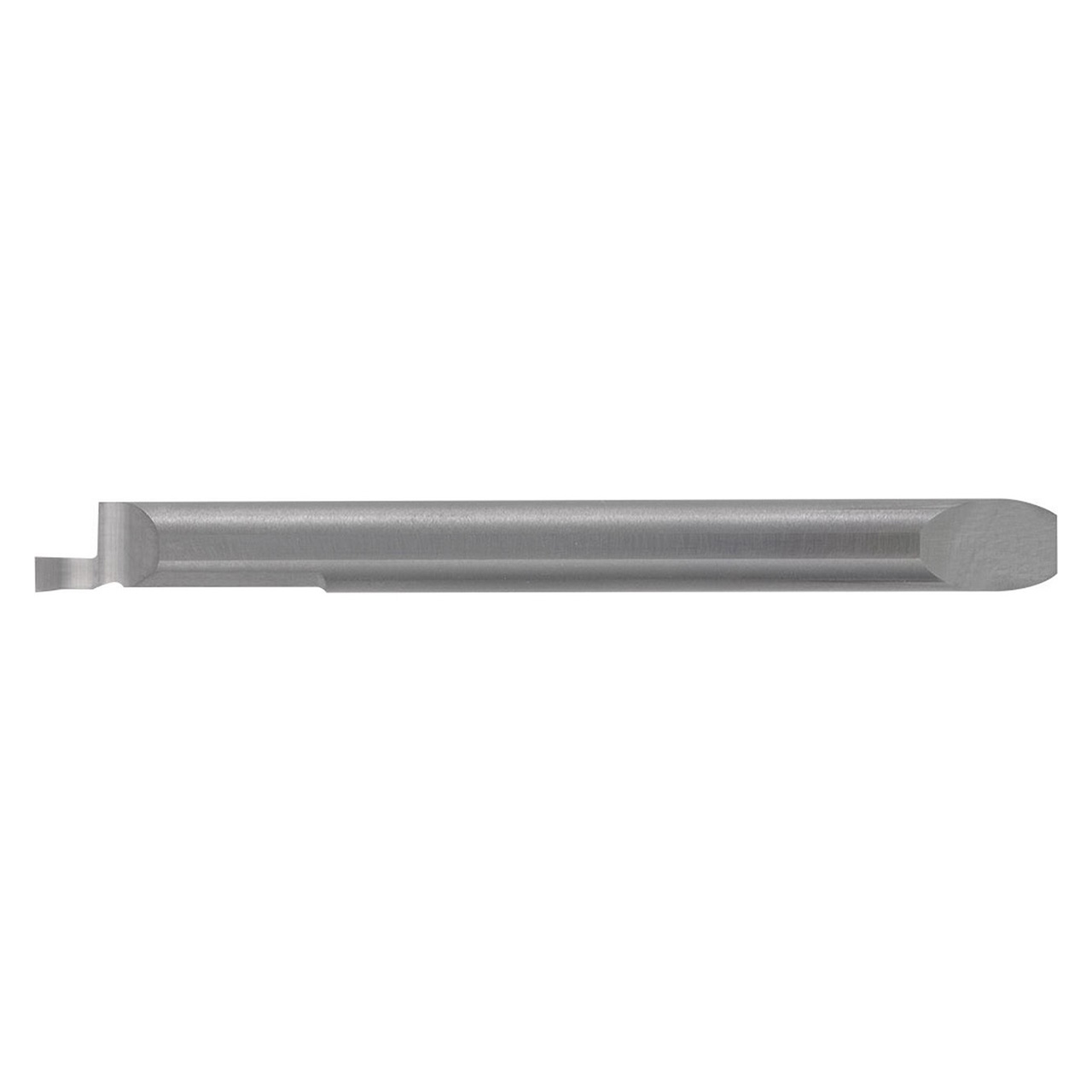

Features:
| EDP Number | TWJ03510 |
| Max Depth of Cut (Decimal Inch) | 0.0591" |
| Max Depth of Cut (mm) | 1.50mm |
| Cutting Width (Decimal Inch) | 0.0394" |
| Cutting Width (mm) | 1.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0394" |
| Cutting Width Minimum (mm) | 1.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.0394" |
| Cutting Width Maximum (mm) | 1.00mm |
| Minimum Face Groove Diameter (Decimal Inch) | 0.1969'' |
| Minimum Face Groove Diameter (mm) | 5.00mm |
| Connection Diameter (Decimal Inch) | 0.1575" |
| Connection Diameter (mm) | 4.00mm |
| Shank Height (Decimal Inch) | 0.1496" |
| Shank Height (mm) | 3.80mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Usable Length (Decimal Inch) | 0.4724" |
| Usable Length (mm) | 12.00mm |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Application | Micro Internal Face Grooving |
| Coating Process | Uncoated |
| Cutter Pitch | PVD |
| Grooving Type | Internal Face Grooving |
| Hand | Right Hand |
| Insert Grade | GW05 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Primary Workpiece Material | Stainless Steel (M) |
