Product Specifications
| Manufacturer Part Number | 177L4720R157N5A |
| Diameter (Decimal Inch) | 0.472" |
| Diameter (mm) | 12.00mm |
| Corner Radius (Decimal Inch) | 0.157" |
| Corner Radius (mm) | 4.00mm |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Overall Length (Decimal Inch) | 5.984" |
| Overall Length (mm) | 152.00mm |
| Length of Cut (Decimal Inch) | 0.945" |
| Length of Cut (mm) | 24.00mm |
| Neck Diameter (Decimal Inch) | 0.449" |
| Neck Diameter (mm) | 11.40mm |
| Neck Length (Decimal Inch) | 2.441" |
| Neck Length (mm) | 62.00mm |
| Helix Angle (Degree) | 35-38 Degree |
| Number of Flutes | 4 |
| Shank Type | Straight |
| Tool Construction | Solid |
| Coating | ALtima |
| Material | Carbide |
| Center Cutting | Yes |

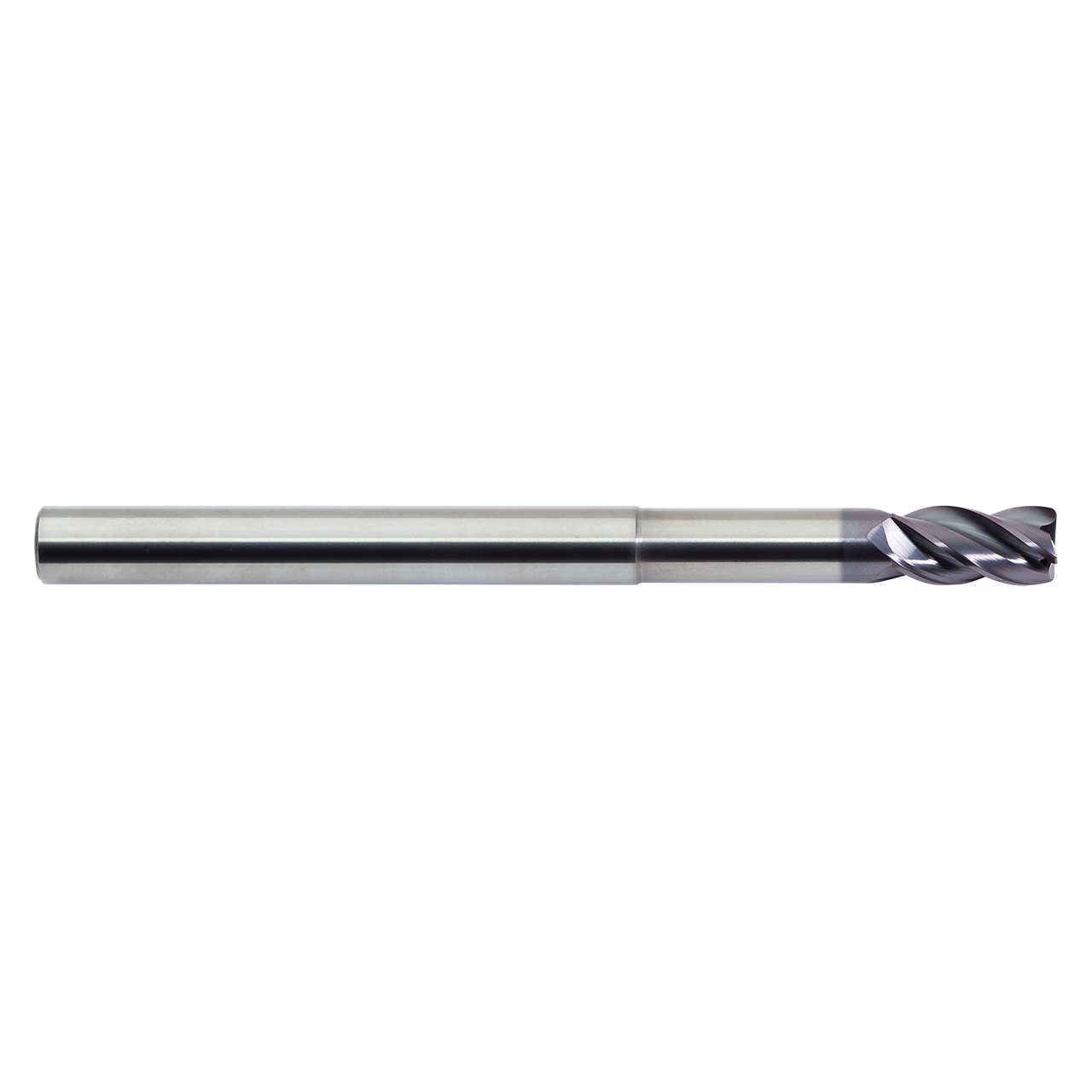

| Product Type | Corner Radius End Mill |
| Country Of Origin | USA |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
