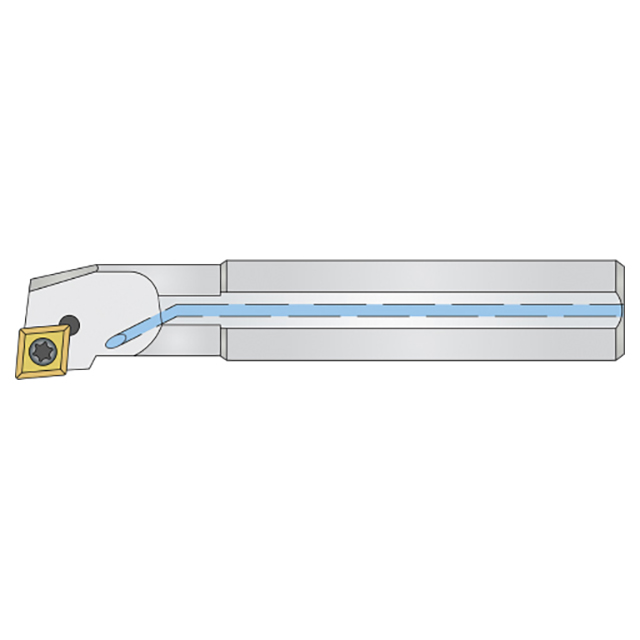

Product Specifications
| Min Bore Diameter (Decimal Inch) | 0.9250" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Centerline Offset (Decimal Inch) | 0.5110" |
| Indexable Nomenclature | A12Q SCLCR 3 |
| Insert Style | CCMT 31.51 |
| Micro 100 Insert Part | 50-1105 |
| Overall Length (Decimal Inch) | 7.10" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Toolholder Style:
A12Q SCLCR 3
Minimum Bore Diameter (Decimal Inch):
0.9250"
Hand of Holder:
Right Hand
Overall Length (Decimal Inch):
7.10"
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Through Coolant:
Yes
Insert Compatibility:
CCMT 31.51
