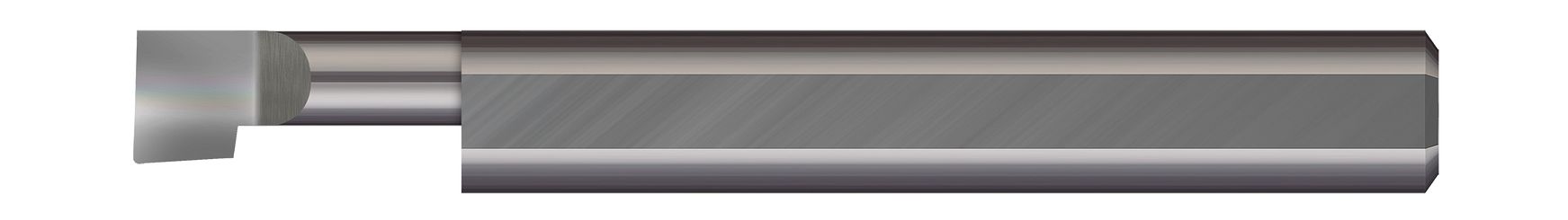

Optimized for facing and boring applications in bores .0550" and larger, this line of right hand boring tools features a polished split face for improved edge retention and chip evacuation while reducing galling.
- Designed for facing and boring applications in bores .0550" and larger
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Corner radius profile
- Lockdown flat automatically locates tool on center
- Coating options provide added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
Min Bore Diameter (Inch) | 0.2800" |
Hand Direction | Right Hand |
Finish/Coating | AlTiN |
Max Bore Depth (Inch) | 0.800" |
Projection (Inch) | 0.0650" |
Shank Diameter (Inch) | 0.3125" (5/16) |
Centerline Offset (Inch) | 0.1038" |
Radius (Inch) | 0.0060" |
Neck Diameter (Inch) | 0.1950" |
Overall Length (Inch) | 2.50" (2-1/2) |
