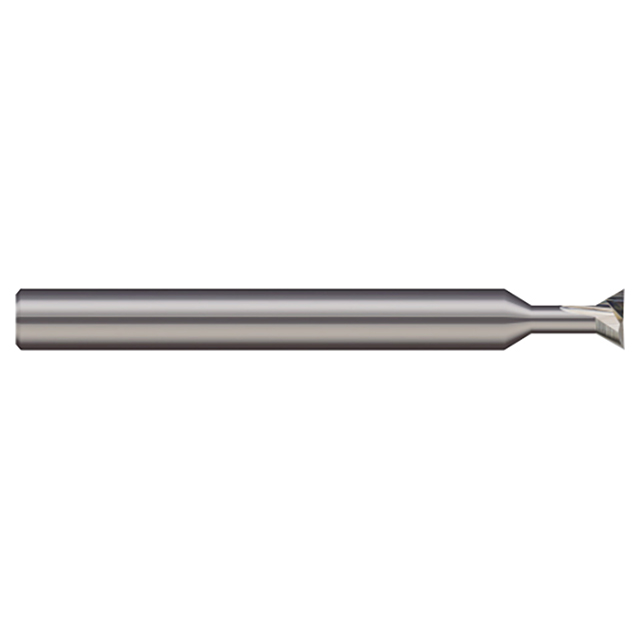

Micro 100 DT-125-090-010 | 1/8" Diameter x 1-1/2" OAL x 90 Degree Included Angle Carbide Dovetail Cutter

$63.70
Ships:
From Partner Facility
Brand:
Micro 100
Included Angle:
90 Degree
Cutting Diameter (Inch):
1/8"
Cutting Diameter (Decimal Inch):
0.1250"
Material:
Carbide
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Ships:
From Partner Facility
SKU:
25166392
UPC:
Weight:
0.10 LBS
Shipping:
Calculated at Checkout
Product Specifications
Cutter Diameter (Inch) 1/8"
Cutter Diameter 0.1250"
Finish/Coating Uncoated
Number of Flutes 2
Length of Cut (Decimal Inch) 0.042"
Shank Diameter (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Corner Radius (Decimal Inch) 0.010"
Angle per Side 45 Degree
Included Angle 90 Degree
Neck Diameter 0.0700"
Neck Length (Inch) 1/8"
Neck Length 0.125"
Overall Length (Inch) 1-1/2"
Overall Length (Decimal Inch) 1.50"
