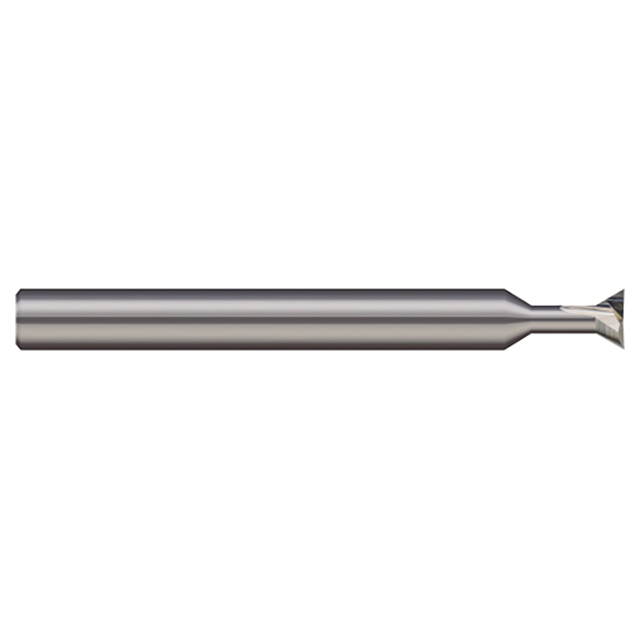

Micro 100 DT-375-030-010 | 3/8" Diameter x 3/8" Shank x 0.263" Width x 2-1/2" OAL 30 Degree Included Angle Carbide Dovetail Cutter

$107.95
Ships:
From Partner Facility
Brand:
Micro 100
Included Angle:
30 Degree
Cutting Diameter (Inch):
3/8"
Cutting Diameter (Decimal Inch):
0.3750"
Material:
Carbide
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Cutter Width (Decimal Inch):
0.263"
Ships:
From Partner Facility
interval quantity:
1
SKU:
25126823
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Product Specifications
Cutter Diameter (Inch) 3/8"
Cutter Diameter (Decimal Inch) 0.3750"
Coating Uncoated
Flutes 3
Length of Cut (Decimal Inch) 0.263"
Shank Diameter (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.3750"
Corner Radius (Decimal Inch) 0.010"
Angle per Side 15 Degree
Included Angle 30 Degree
Neck Diameter (Decimal Inch) 0.2400"
Neck Length (Inch) 3/8"
Neck Length (Decimal Inch) 0.375"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
