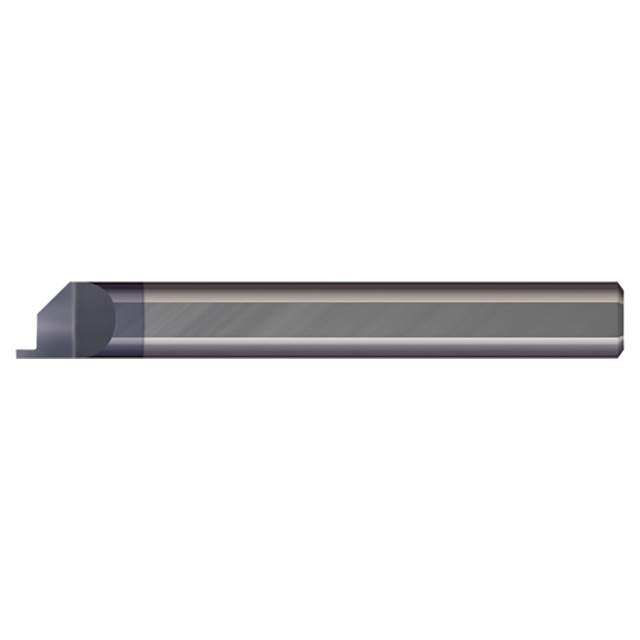

Micro 100 FG-250-050X | 0.050" Width x 0.0500" Projection x 1/4" Shank x 2-1/2" OAL AlTiN Coated Carbide Grooving Tool

$36.40
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Groove Width (Decimal Inch):
0.050"
Projection (Decimal Inch):
0.0500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Finish/Coating:
AlTiN
Ships:
From Partner Facility
SKU:
25126986
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Inch) 1/4"
Min Bore Diameter (Decimal Inch) 0.2500"
Hand Direction Right Hand
Finish/Coating AlTiN
Projection (Decimal Inch) 0.0500"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Face Dimension (Inch) 1/8"
Face Dimension (Decimal Inch) 0.125"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Split Length (Decimal Inch) 0.215"
Tooth Width (Decimal Inch) 0.0500"
