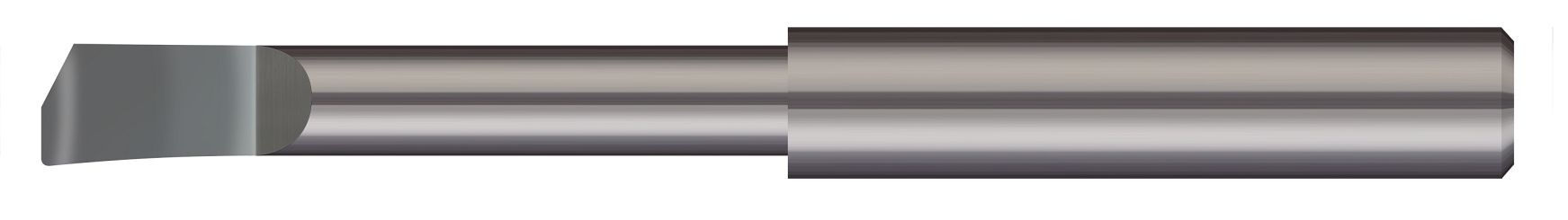

Micro 100 HBBC-1201000-004 | 0.1100" Minimum Bore Diameter x 1" Maximum Bore Depth x 1/8" Shank x 1-1/2" OAL Uncoated Carbide Boring Bar

$27.15 $25.43
(You save $1.72)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25175569
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
HBBC-1201000-004

This fully stocked offering of Micro 100 Helical Back Rake Boring Tools features a corner radius profile for added strength and improved tool life. This unique tool is also available for use with Micro 100's Micro-Quik.

  • Designed for boring applications in bores .030" and larger
  • Polished face for improved edge retention and chip evacuation while reducing galling
  • Helical grind provides ideal top rake for better chip control and freer cutting
  • Well suited for machining plastics
  • On center neck design allows for static and live/rotating applications
  • Lockdown flat automatically locates tool on center
  • Corner radius profile
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1100" (2.8 mm)
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 1" (1)
Shank Diameter (Inch) 0.1250" (1/8)
Centerline Offset (Inch) 0.0600"
Radius (Inch) 0.0040"
Face Dimension 0.063" (1/16)
Neck Diameter (Inch) 0.1000"
Overall Length (Inch) 1.50" (1-1/2)
Rotational Min Bore Diameter (Inch) 0.120"
