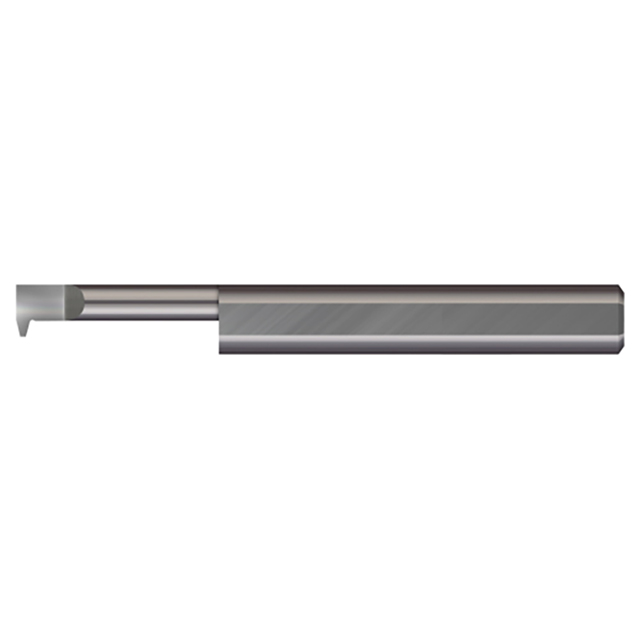

Product Specifications
Min Bore Diameter (Decimal Inch) | 0.2000" |
Hand Direction | Right Hand |
Finish/Coating | Uncoated |
Max Bore Depth (Decimal Inch) | 0.400" |
Projection (Decimal Inch) | 0.0450" |
Shank Diameter (Inch) | 1/4" |
Shank Diameter (Decimal Inch) | 0.2500" |
Centerline Offset (Decimal Inch) | 0.0750" |
Offset (Decimal Inch) | 0.035" |
Face Dimension (Inch) | 1/8" |
Face Dimension (Decimal Inch) | 0.125" |
Flat Width (Decimal Inch) | 0.021" |
Neck Diameter (Decimal Inch) | 0.1500" |
Overall Length (Inch) | 2-1/2" |
Overall Length (Decimal Inch) | 2.50" |
Split Length (Decimal Inch) | 0.175" |
Tooth Width (Decimal Inch) | 0.0690" |
TPI | 16 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
IAT
Type:
Turning
Cutting Direction:
Right Hand
Shank Width/Diameter (Inch):
1/4"
Shank Width/Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Pitch (TPI):
16
Minimum Bore Diameter (Decimal Inch):
0.2000"
Maximum Bore Depth (Decimal Inch):
0.400"
Finish/Coating:
Uncoated
Ships:
From Partner Facility
