Product Specifications
| Manufacturer Part Number | IT-050250X |
| Minimum Bore Diameter (Decimal Inch) | 0.0550" |
| Minimum Bore Diameter (mm) | 1.40mm |
| Maximum Bore Diameter (Decimal Inch) | 0.250" |
| Maximum Bore Diameter (Inch) | 1/4" |
| Projection (Decimal Inch) | 0.0200" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter(mm) | 0.0125" |
| Offset (Decimal Inch) | 0.012" |
| Radius (Decimal Inch) | 0.0010" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Hand Direction | Right Hand |
| Neck Diameter (Decimal Inch) | 0.0250" |
| Overall Length (Decimal Inch) | 1.50" |
| Overall Length (Inch) | 1-1/2" |
| Thread Size | 28-72" |
| TPI | 28-72 TPI |
| Coating | AlTiN |

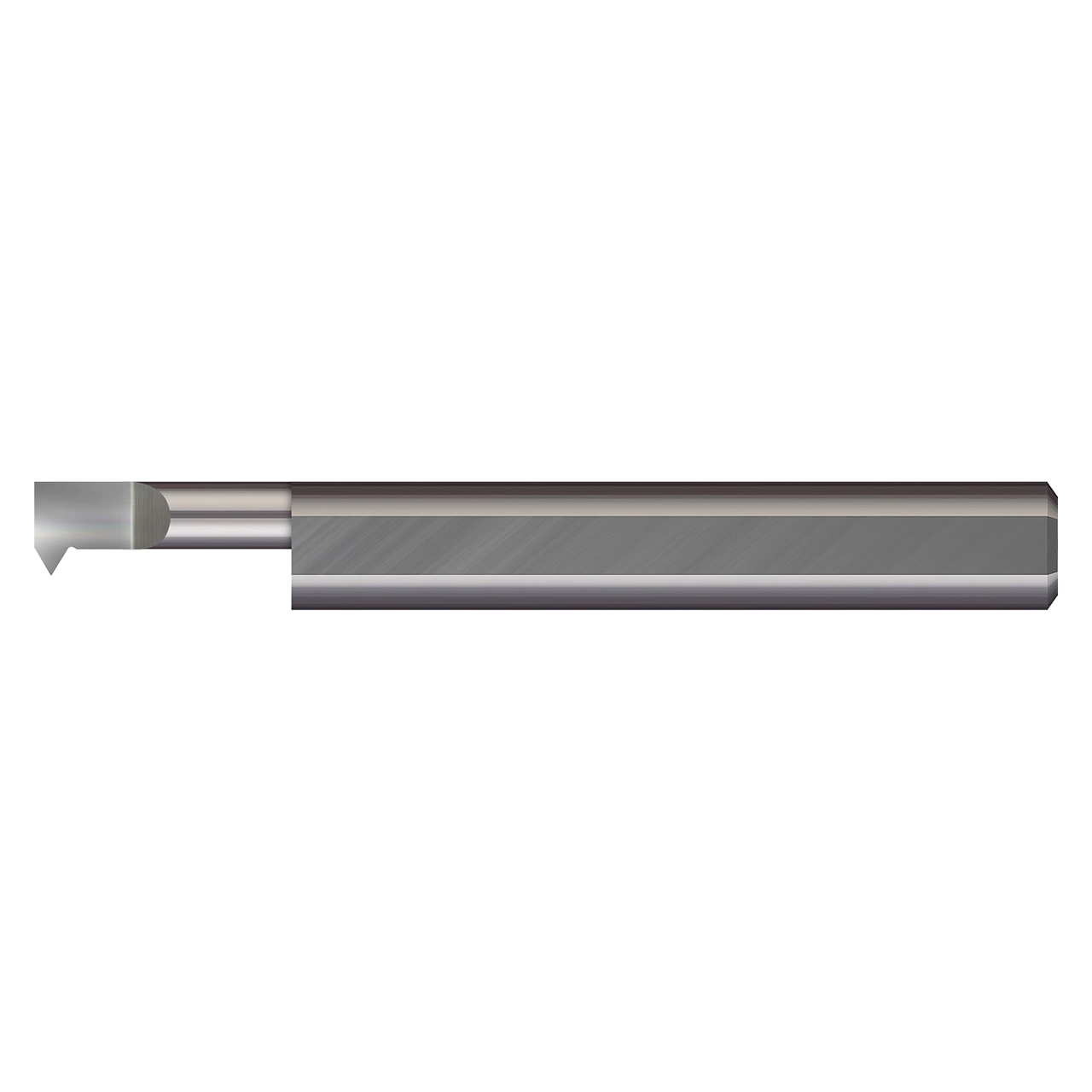

| Product Type | Single Point Threading Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
