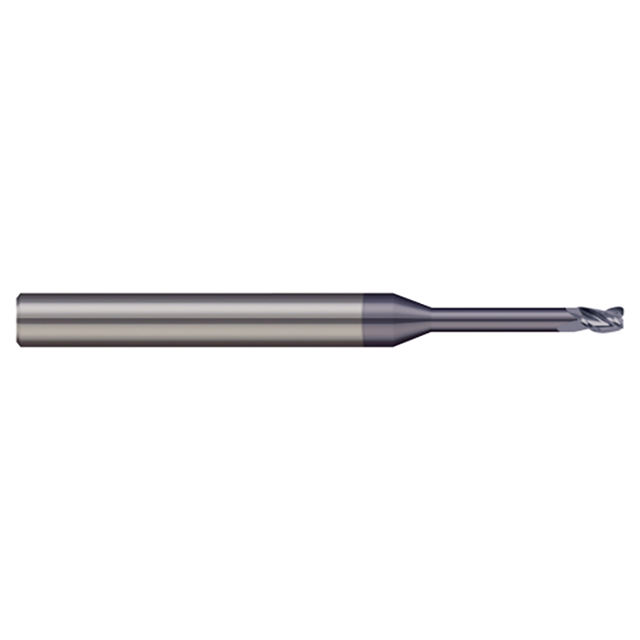

Micro 100 MEF-078-400-3-005K | 5/64" Diameter x 1/8" Shank x 0.117" LOC x 0.400" Reach x 1-1/2" OAL x 0.005" Corner Radius nACRo Coated Carbide End Mill

About This Item

Product Specifications

Cutter Diameter (Inch)	5/64"
Cutter Diameter (Decimal Inch)	0.0781"
Coating	nACRo
Flutes	3
Length of Cut (Decimal Inch)	0.117"
Shank Diameter (Inch)	1/8"
Shank Diameter (Decimal Inch)	0.1250"
Corner Radius (Decimal Inch)	0.005"
Neck Diameter (Decimal Inch)	0.0740"
Overall Length (Inch)	1-1/2"
Overall Length (Decimal Inch)	1.50"
Overall Reach (Decimal Inch)	0.400"
