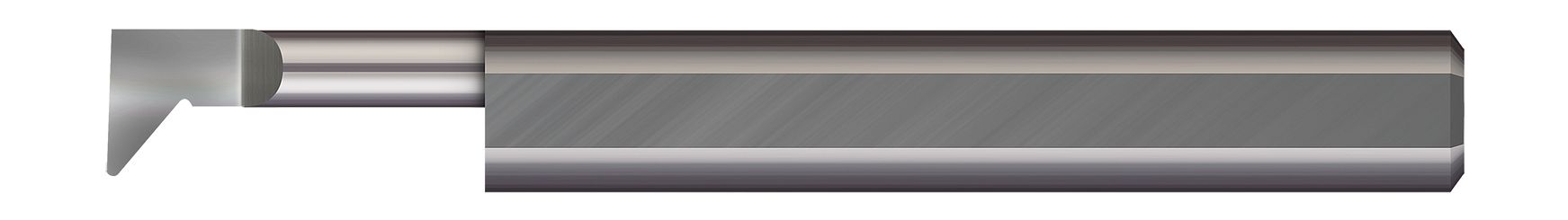

This Micro 100 solid carbide Radial Profiling Tool is also an excellent choice for fine finishing, and can even be used in thread relief applications.
- Designed for radial profiling
- Excellent choice for fine finishing
- Can be used in thread relief applications
- Split geometry makes the tool as rigid as possible
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.2520" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 1.250" (1-1/4) |
| Projection (Inch) | 0.0800" |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Centerline Offset (Inch) | 0.0738" |
| Corner Radius (Inch) | 0.008" |
| Neck Diameter (Inch) | 0.1500" |
| Overall Length (Inch) | 2.50" (2-1/2) |
