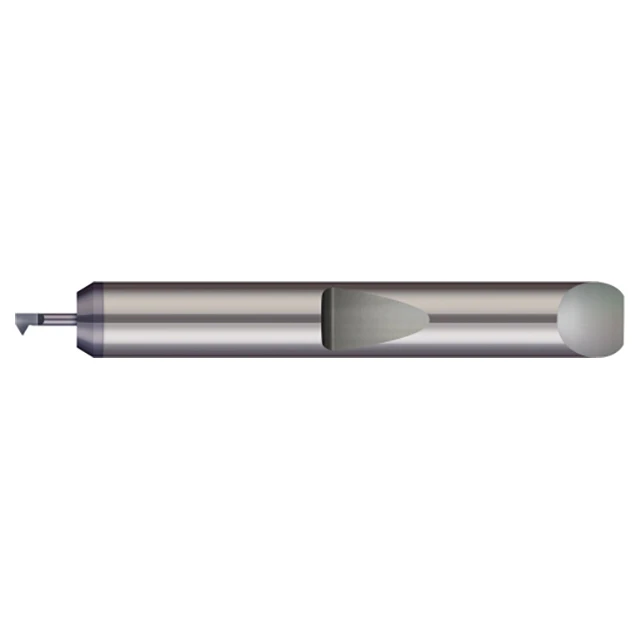

Product Specifications
| Min Bore Diameter (Decimal Inch) | 0.0400" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Decimal Inch) | 0.075" |
| Projection (Decimal Inch) | 0.0200" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Centerline Offset (Decimal Inch) | 0.0300" |
| Offset (Inch) | 1/64" |
| Offset (Decimal Inch) | 0.015" |
| Corner Radius (Decimal Inch) | 0.002" |
| Length from Holder (Decimal Inch) | 0.590" |
| Neck Diameter (Decimal Inch) | 0.0200" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.50" |
| Thread Size | 56-80 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
QIT
Type:
Turning
Cutting Direction:
Right Hand
Shank Width/Diameter (Inch):
3/16"
Shank Width/Diameter (Decimal Inch):
0.1875"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.50"
Minimum Bore Diameter (Decimal Inch):
0.0400"
Maximum Bore Depth (Decimal Inch):
0.075"
Finish/Coating:
AlTiN
Radius (Decimal Inch):
0.002"
Thread Range:
56-80
Ships:
From Partner Facility
IsDiscontinued:
