Product Specifications

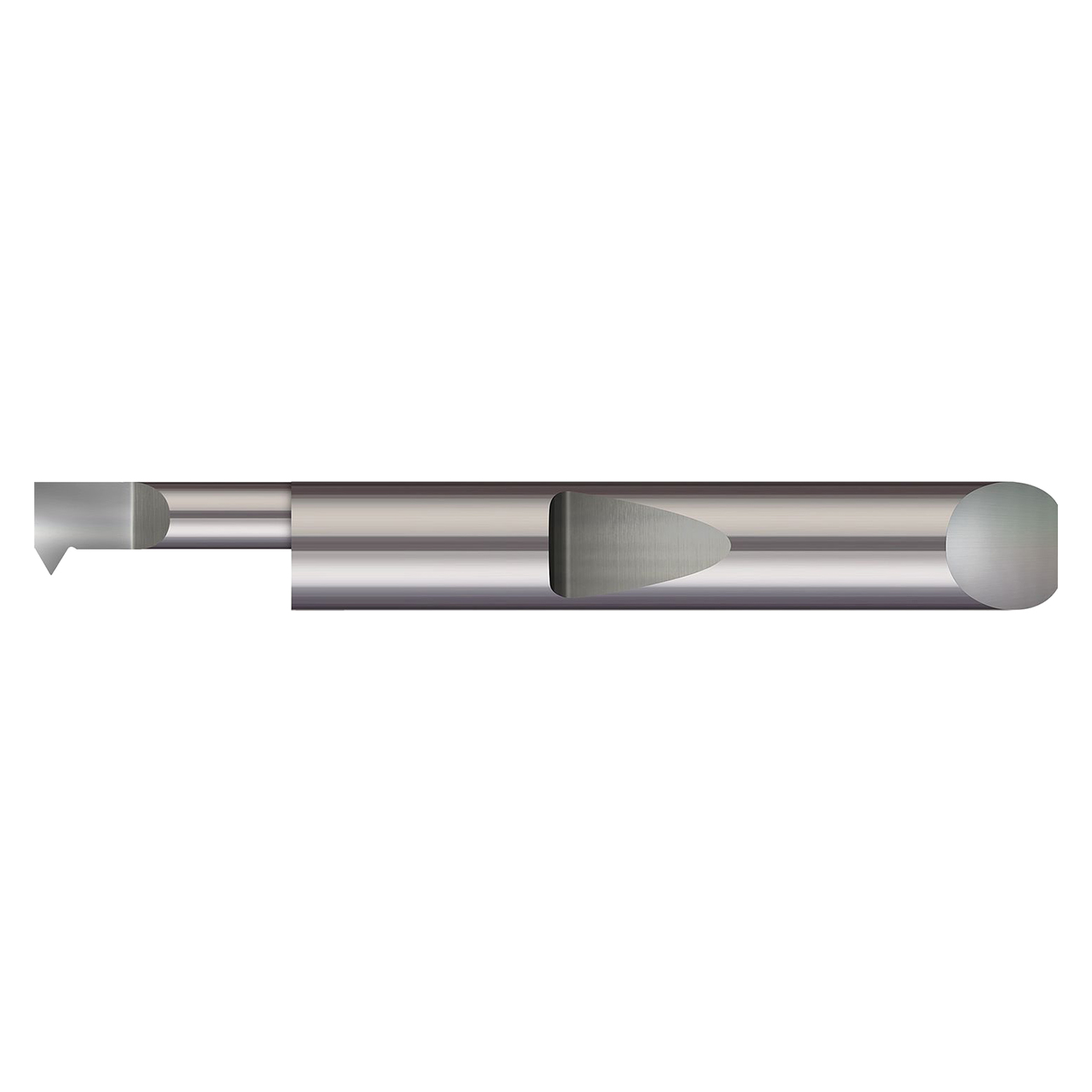

| Manufacturer Part Number | QIT-100750X |
| Minimum Bore Diameter (Decimal Inch) | 0.1100" |
| Minimum Bore Diameter (mm) | 2.80mm |
| Maximum Bore Diameter (Decimal Inch) | 0.750" |
| Maximum Bore Diameter (Inch) | 3/4" |
| Projection (Decimal Inch) | 0.0250" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Projection (Decimal Inch) | 3/16" |
| Shank Diameter(mm) | 0.0062" |
| Offset (Decimal Inch) | 0.018" |
| Corner Radius (Decimal Inch) | 0.002" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 1.090" |
| Neck Diameter (Decimal Inch) | 0.0750" |
| Neck Diameter (mm) | 1.90mm |
| Overall Length (Decimal Inch) | 2.00" |
| Overall Length (Inch) | 2" |
| Thread Size | 24-56" |
| TPI | 24-56 TPI |
| Coating | AlTiN |
| Product Type | Single Point Threading Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
