Product Specifications
| Min Bore Diameter (Decimal Inch) | 0.2900" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 1-3/4" |
| Max Bore Depth (Decimal Inch) | 1.750" |
| Projection (Decimal Inch) | 0.0700" |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Centerline Offset (Decimal Inch) | 0.1338" |
| Offset (Decimal Inch) | 0.046" |
| Corner Radius (Decimal Inch) | 0.002" |
| Length from Holder (Decimal Inch) | 1.853" |
| Neck Diameter (Decimal Inch) | 0.2200" |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.00" |
| Thread Size | 14-40 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

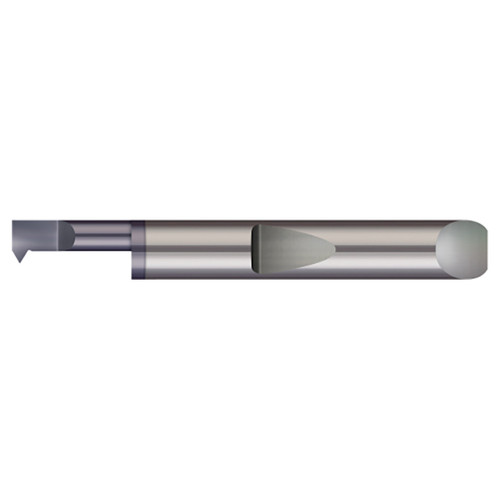

Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
QIT
Type:
Turning
Cutting Direction:
Right Hand
Shank Width/Diameter (Inch):
5/16"
Shank Width/Diameter (Decimal Inch):
0.3125"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.00"
Minimum Bore Diameter (Decimal Inch):
0.2900"
Maximum Bore Depth (Inch):
1-3/4"
Maximum Bore Depth (Decimal Inch):
1.750"
Finish/Coating:
AlTiN
Radius (Decimal Inch):
0.002"
Thread Range:
14-40
Ships:
From Partner Facility
IsDiscontinued:
