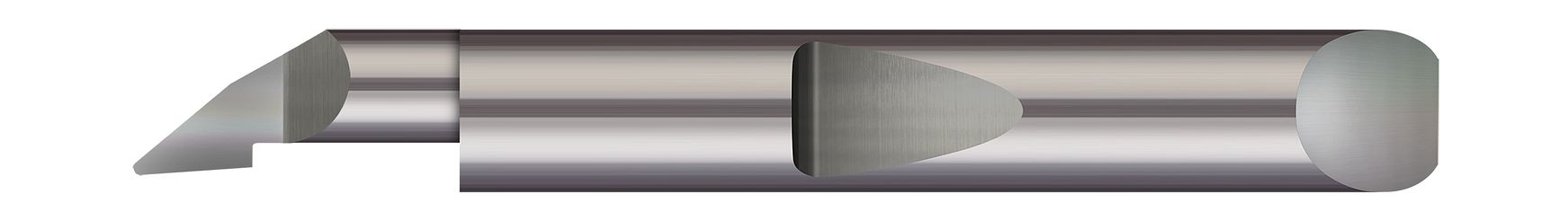

Micro 100 QPF5-110375X | 0.1220" Minimum Bore Diameter x 3/8" Maximum Bore Depth x 3/16" Shank x 1-1/2" OAL AlTiN Coated Carbide Profiling Tool

$34.95 $33.35
(You save $1.60)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25202273
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

The unique design of this tool maximizes tool versatility and part feature creation, and has a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for both radial and axial profiling
  • Unique design maximizes tool versitilty and part feature creation
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1220"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.375" (3/8)
Projection (Inch) 0.0150" (1/64)
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) 0.0163"
Corner Radius (Inch) 0.005"
Length from Holder 0.590"
Neck Diameter (Inch) 0.0950"
Overall Length (Inch) 1.50" (1-1/2)
