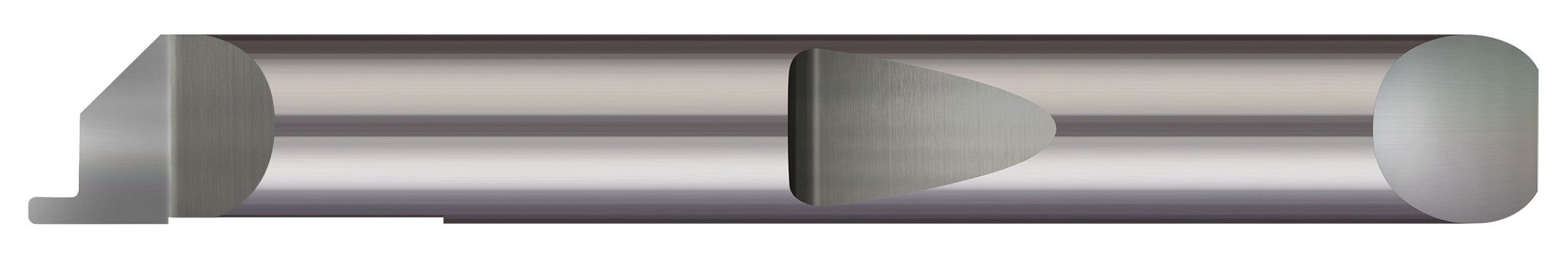

Micro 100 QRRC6-125-1000-495 | 0.4950" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.1250" (1/8) Tooth Width x 0.1500" Projection x 0.5000" (1/2) Shank DIA x 2.50" (2-1/2) OAL x 0.0060" Radius - Carbide Retaining Ring Grooving Right Hand

Brand:

Micro 100

Minimum Bore Diameter (Decimal Inch):

0.5170"

Head Width (Decimal Inch):

0.4950"

Finish/Coating:

Uncoated

Maximum Bore Depth (Inch):

1"

Maximum Bore Depth (Decimal Inch):

1.0000"

Projection (Decimal Inch):

0.1500"

Shank Diameter (Inch):

1/2"

Shank Diameter (Decimal Inch):

0.5000"

Radius (Decimal Inch):

0.0060"

Neck Diameter (Decimal Inch):

0.3450"

Overall Length (Inch):

2-1/2"

Overall Length (Decimal Inch):

2.5000"

interval quantity:

1

SKU:

25178524

UPC:

Weight:

0.30 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
