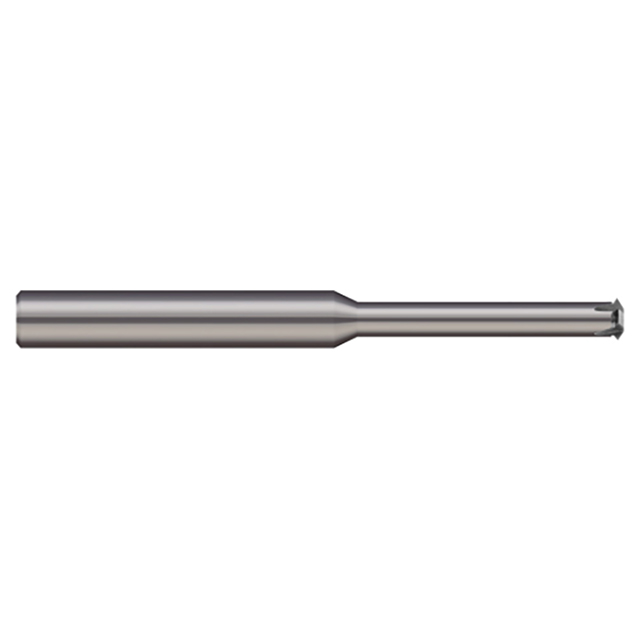

Micro 100 TM-180-16 | 18-56 TPI 0.0900" Neck Diameter x 1" Neck Length Uncoated Carbide Thread Mill

$79.40
Ships:
From Partner Facility
Brand:
Micro 100
Minimum Threads Per Inch:
18
Maximum Threads Per Inch:
56
Thread Type:
Internal/External
Material:
Carbide
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Number of Flutes:
4
Cutter Diameter (Decimal Inch):
0.1800"
Neck Diameter (Decimal Inch):
0.0900"
Neck Length (Inch):
1"
Neck Length (Decimal Inch):
1.000"
Finish/Coating:
Uncoated
Ships:
From Partner Facility
SKU:
15020818
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Cutter Diameter (Decimal Inch) 0.1800"
Coating Uncoated
Flutes 4
Length of Cut (Decimal Inch) 0.055"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Flat Width (Decimal Inch) 0.002"
Neck Diameter (Decimal Inch) 0.0900"
Neck Length (Inch) 1"
Neck Length (Decimal Inch) 1.000"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Thread Size 18-56
