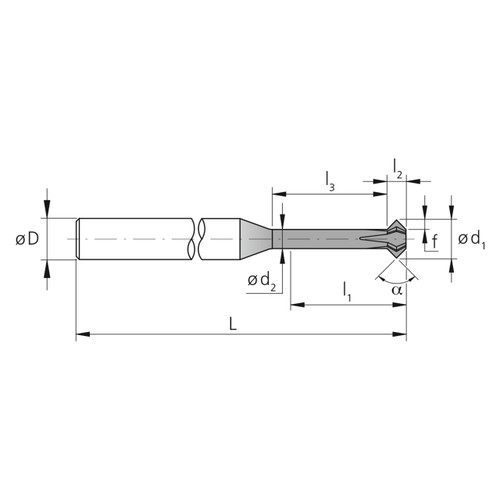

| Manufacturer Part Number | 2.DC.03090090.1 |
| Cutter Head Diameter d1 (Decimal Inch) | 0.035" |
| Cutter Head Diameter d1 (mm) | 0.90mm |
| Chamfer Size (Decimal Inch) | 0.009" |
| Chamfer Size (mm) | 0.23mm |
| Cutter Head Diameter d2 (Decimal Inch) | 0.018" |
| Cutter Head Diameter d2 (mm) | 0.45mm |
| Length of Cut (Decimal Inch) | 0.106" |
| Length of Cut (mm) | 2.70mm |
| Neck Length (Decimal Inch) | 0.018" |
| Neck Length (mm) | 0.45mm |
| Shank Diameter (Decimal Inch) | 0.118" |
| Shank Diameter (mm) | 3.00mm |
| Overall Length (Decimal Inch) | 2.110" |
| Overall Length (mm) | 53.50mm |
| Chamfer Angle (Degree) | 90 Degree |
| Number of Flutes | 4 |
| Coating | eXedur RIP |
| Product Type | Double Chamfer Tool |
