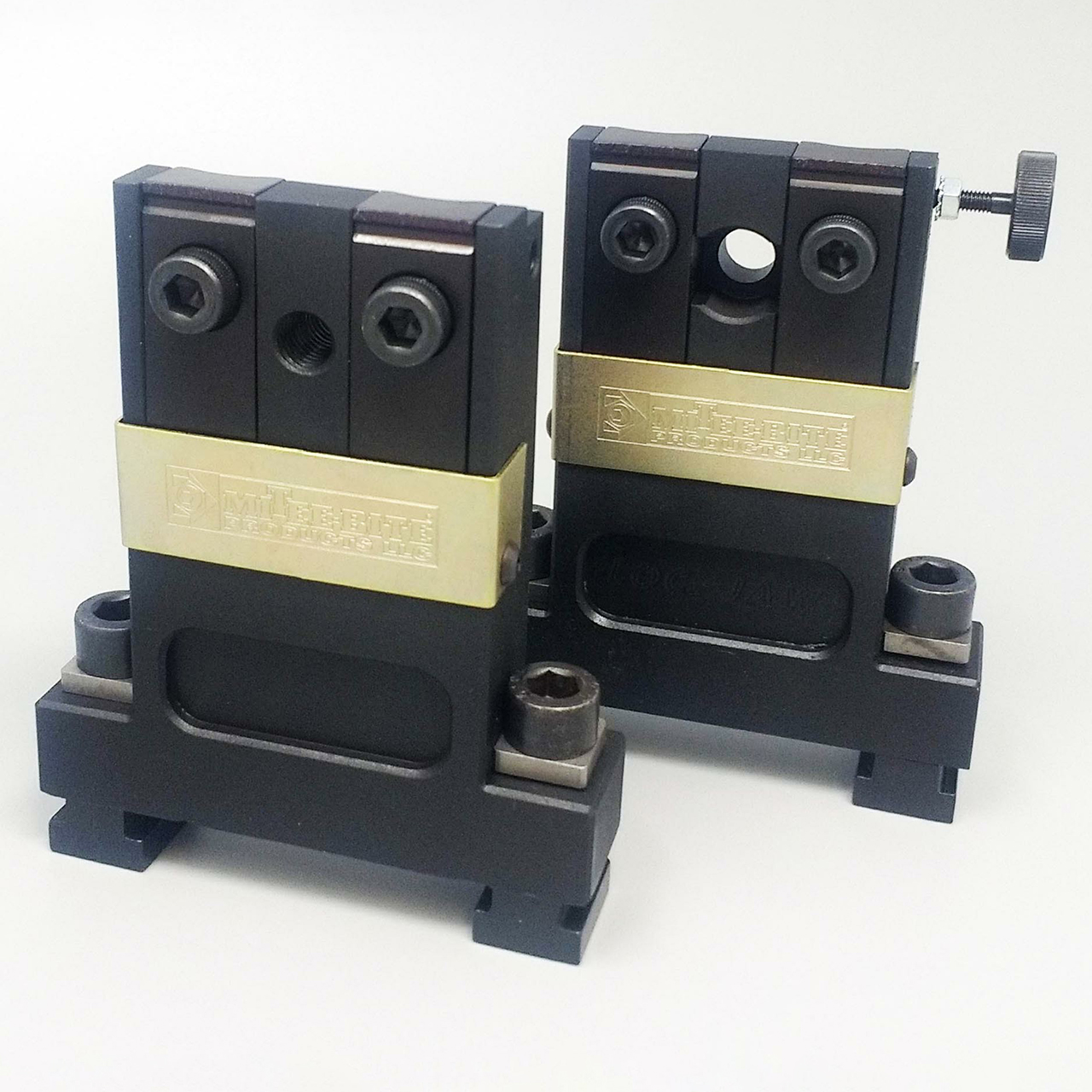

The Loc-Jaw system was conceived to simplify, and allow greater tooling access and more versatility securing yparts when 4th and 5th axis machining. Designed to hold raw stock without a pre-op using the carrier method, penetrating material using the Knife-edge grippers or holding machined surfaces with the Blunt-edge grippers installed.
Features:
- Unique design allows access to bottom of workpiece
- Ability to hold parts from .500" to 4.00" or up to 1 Meter with optional extension kit
- 6,000+ lbs of holding force gripping on only .125" of material
- Knife-Edge grippers designed to penetrate into material up to .060" deep. Blunt Edge Grippers are also included for non-marring applications. All grippers heat treated A2
- Gain maximum tool access to ywork
- Centering Disk included for Loc-Jaw base
- Set of locating pins included. (Liners installed in base)
- Blunt-edge grippers with #2 or #3 grit carbinite coating are reco mmended for high speed machining on hard alloys
Product Specifications
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Mitee-Bite
Ships:
From Manufacturer
