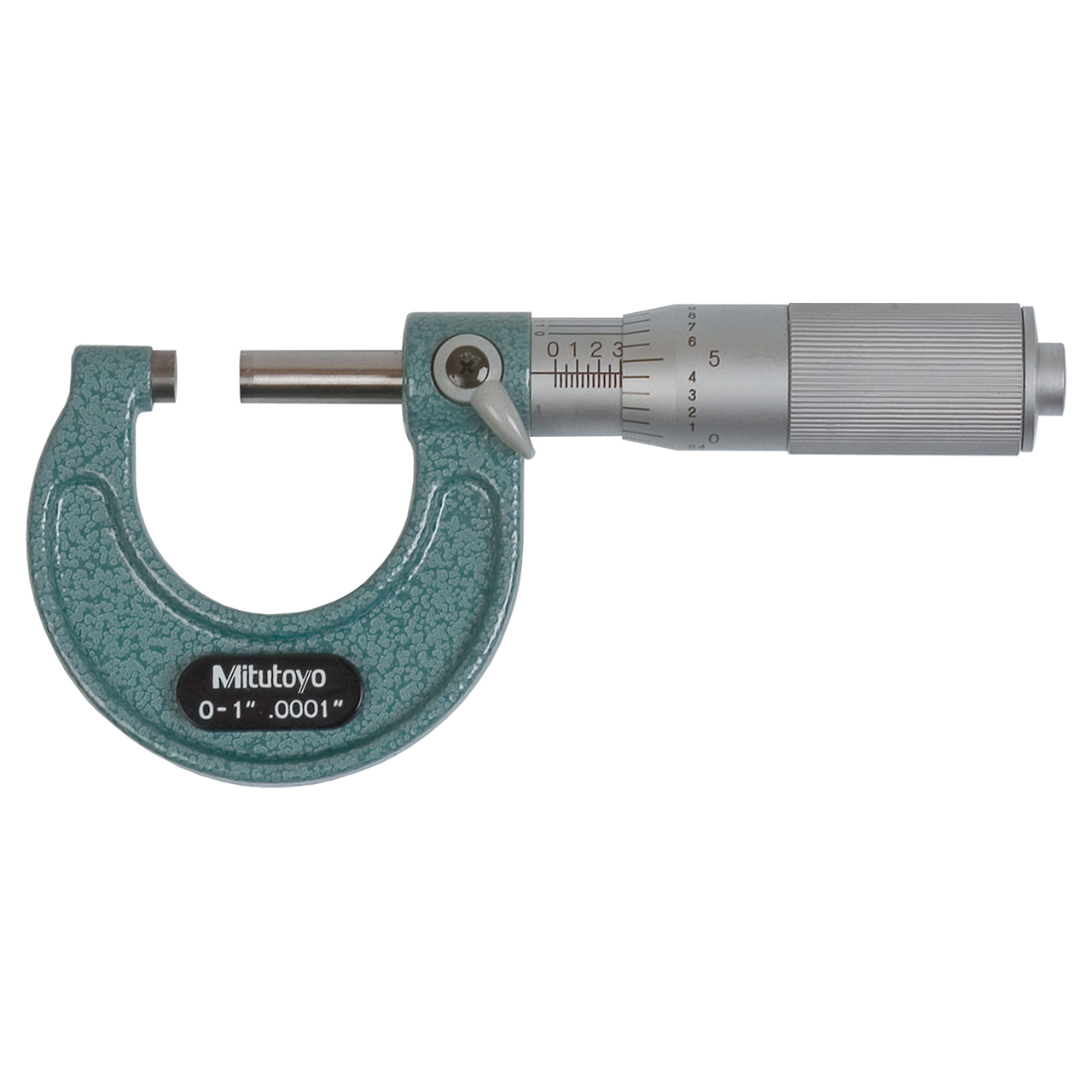

The Mitutoyo 103-135 Mechanical Outside Micrometer is a precision measuring tool for checking outside dimensions on machined parts, components, and other workpieces. It has a 0 to 1" measuring range with 0.0001" graduations, making it suitable for applications that require consistent dimensional readings.
A friction thimble helps maintain a steady measuring force and supports repeatable measurements. The frame features a hammertone, baked enamel finish for a durable working surface, while carbide measuring surfaces provide dependable contact with the workpiece.
The 103-135 model is a practical choice for machine shops, inspection areas, maintenance departments, and manufacturing applications where accurate outside measurement is required.
0 to 1" Measuring Range
The Mitutoyo 103-135 Mechanical Outside Micrometer measures outside dimensions from 0 to 1". The range works well for smaller components and precision dimensional inspection.
0.0001" Graduation
Fine 0.0001" graduations allow users to take detailed dimensional readings. The clear mechanical scale supports direct measurement without electronic power or batteries.
Friction Thimble
The friction thimble helps apply a consistent measuring force during use. Consistent contact pressure can make repetitive measurements easier and help reduce variation between readings.
Carbide Measuring Surfaces
Carbide measuring surfaces provide durable contact points for regular inspection work. They are well suited to machine shop environments where measuring tools may see frequent use.
Hammertone Baked Enamel Finish
The frame has a hammertone, baked enamel finish that adds a durable surface to the micrometer. The finish also gives the tool a traditional shop ready appearance.
Mechanical Operation
The mechanical design provides direct readings without batteries, displays, or electronic components. It can be a useful option for machinists and inspectors who prefer a conventional micrometer.
| Brand | Mitutoyo |
| Manufacturer Number | 103-135 |
| Product Type | Mechanical Outside Micrometer |
| Measuring Range | 0 to 1" |
| Maximum Measurement | 1" |
| Maximum Measurement | 1.0000" |
| Maximum Measurement | 25.40 mm |
| Graduation | 0.0001" |
| Measuring Surface Material | Carbide |
| Frame Finish | Hammertone baked enamel |
| Thimble Type | Friction thimble |
| Interval Quantity | 1 |
What is the measuring range of the Mitutoyo 103-135?
The micrometer has a measuring range of 0 to 1", with a maximum measurement of 1.0000" or 25.40 mm.
What is the graduation of the 103-135?
The micrometer has 0.0001" graduations for fine dimensional measurement.
Is the Mitutoyo 103-135 mechanical or electronic?
The 103-135 is a mechanical outside micrometer. It does not require batteries or an electronic display.
Does the micrometer have a friction thimble?
Yes. The Mitutoyo 103-135 includes a friction thimble to help produce consistent measuring force and repeatable readings.
What material are the measuring surfaces made from?
The measuring surfaces are specified as carbide, providing durable contact surfaces for dimensional inspection.
What type of finish does the frame have?
The frame has a hammertone, baked enamel finish.
Is the 103-135 suitable for machine shop inspection?
Yes. Its 0 to 1" range and 0.0001" graduations make it suitable for checking outside dimensions on small machined components and parts.
Does the micrometer require batteries?
No. The 103-135 uses a mechanical measuring system, so batteries are not required.
How many units are included?
The listed interval quantity is 1, so the product is supplied as one micrometer.
Where can I use the Mitutoyo 103-135?
The micrometer can be used in machine shops, manufacturing facilities, inspection areas, maintenance departments, and other applications requiring precise outside dimensional measurements.
